Multi-spoke styling (styl.4) for BMW 7 Series E32 730i (1988)

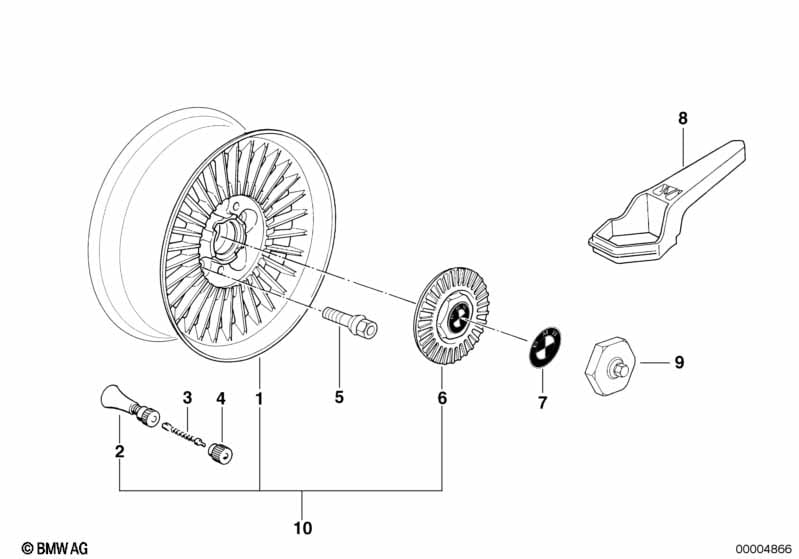

This Multi-spoke styling (styl.4) technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Alloy rim forged | 7JX15 ET:20 | 4 | 36111180306 | $360.95 | TÜV 9782298 | Shop at ECS Tuning | |||
| 02 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Hub cap | 4 | 36131180581 | $34.00 | Shop at ECS Tuning | |||||
| 07 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 08 | Hub cap wrench | SW80 | 1 | 36131179325 | $9.12 | Shop at ECS Tuning | ||||
| 09 | Hub cap wrench | SW=17MM | 1 | 36131180626 | $8.82 | Shop at ECS Tuning | ||||
| 10 | Alloy rim forged | 7JX15 ET:20 | 4 | 36119059211 | ENDED, TÜV 9782298 | Shop at ECS Tuning |
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
