BMW LA wheel, Multispoke 410 for BMW 5 Series F10 LCI 520d (2016)

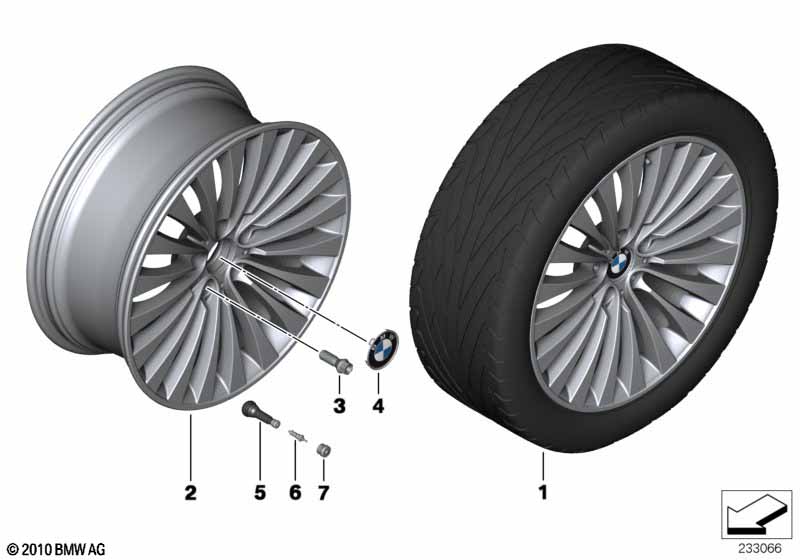

This BMW LA wheel, Multispoke 410 technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | In member states of the EU and in Switzerland the excerpt from the EU type approval (available in wheel/tire sets on the EF homepage and/or on the Commercial Service Data DVD, in Germany also in the Infonet under BMW > Aftersales > Zubehör > Gutachten) is to be remitted to the customer. It may be necessary to amend the vehicle's official documents in specific individual countries. For vehicles with 20'' LAW Multispoke 410 and National version China |
SZSLA=Yes L8AAA=No |
||||||||
| Disk wheel, black, machine polished | ||||||||||
| 02 | Gloss-turned light alloy rim | 8 1/2JX20 ET:33 | 2 | 36116797477 | ENDED, TÜV 2297456 | Shop at ECS Tuning | ||||
| 02 | Gloss-turned light alloy rim | 9JX20 ET:44 | 2 | 36116797478 | ENDED, TÜV 2297456 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 05 | Screw-in valve RDC | GRÜN | 4 | 09/2010 | 36146792830 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 07 | Valve caps RDC | 4 | 09/2010 | 36111095436 | $0.35 | Shop at ECS Tuning | ||||
