BMW LA wheel Star Spoke 365 - 18'' for BMW 5 Series F18 LCI 520Li (2017)

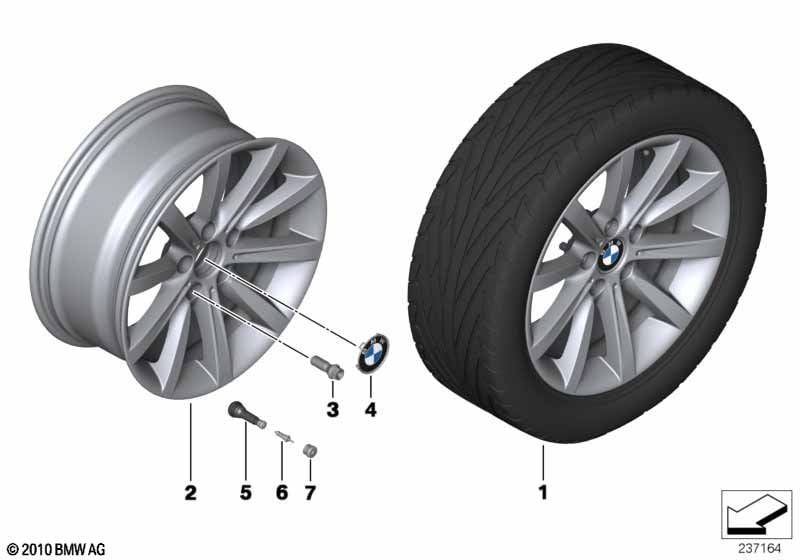

This BMW LA wheel Star Spoke 365 - 18'' technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 LCI 520Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel, Star Spoke 365 or BMW LA wheel, Star Spoke 365 or BMW LA wheel, Star Spoke 365 |
S2D3A=Yes S2DNA=Yes S2DZA=Yes |
||||||||
| 02 | Light alloy rim, black | 8JX18 ET:30 | 4 | 36116867128 | Shop at ECS Tuning | |||||
| For vehicles with BMW LA wheel, Star Spoke 365 only for rear axle Mixed tyres |
S2DNA=Yes |
|||||||||
| 02 | Disc wheel, light alloy, reflex-silber | 9JX18 ET:44 | 2 | 36116794689 | Shop at ECS Tuning | |||||
| For vehicles with BMW LA wheel, Star Spoke 365 or BMW LA wheel, Star Spoke 365 or BMW LA wheel, Star Spoke 365 |
S2D3A=Yes S2DNA=Yes S2DZA=Yes |
|||||||||
| 02 | Disc wheel, light alloy, reflex-silber | 8JX18 ET:30 | 4 | 36116794688 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
