BMW LA wheel, Double Spoke 424 for BMW X6 E71 30dX

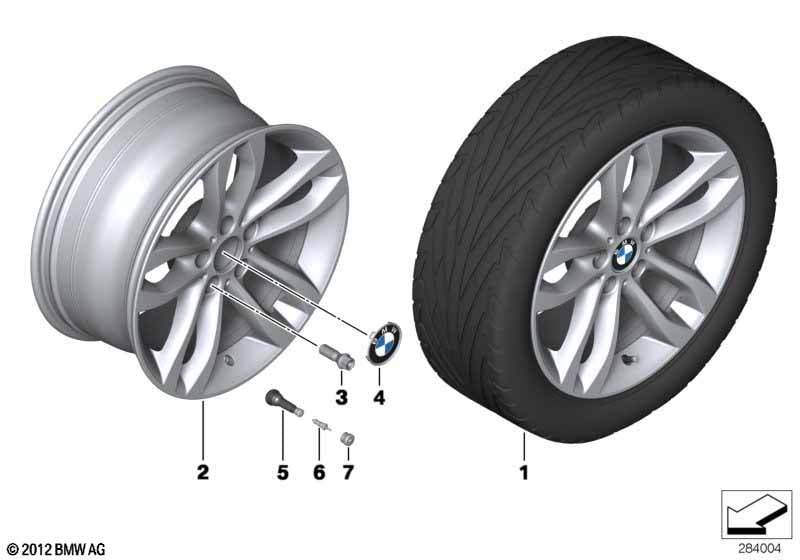

This BMW LA wheel, Double Spoke 424 technical drawing provides a detailed breakdown of the assembly for the X6 E71 30dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW LA wheel, Double Spoke 424 |
S2A3A=Yes |
||||||||
| Front axle | ||||||||||
| 02 | Gloss-turned light alloy rim | 9JX19 ET:48 | 2 | 36116851073 | Shop at ECS Tuning | |||||
| Rear axle | ||||||||||
| 02 | Gloss-turned light alloy rim | 9JX19 ET:18 | 2 | 36116851074 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
