BMW LA wheel M Double Spoke 434 - 20'' for BMW 5 Series F10 LCI 530d (2013)

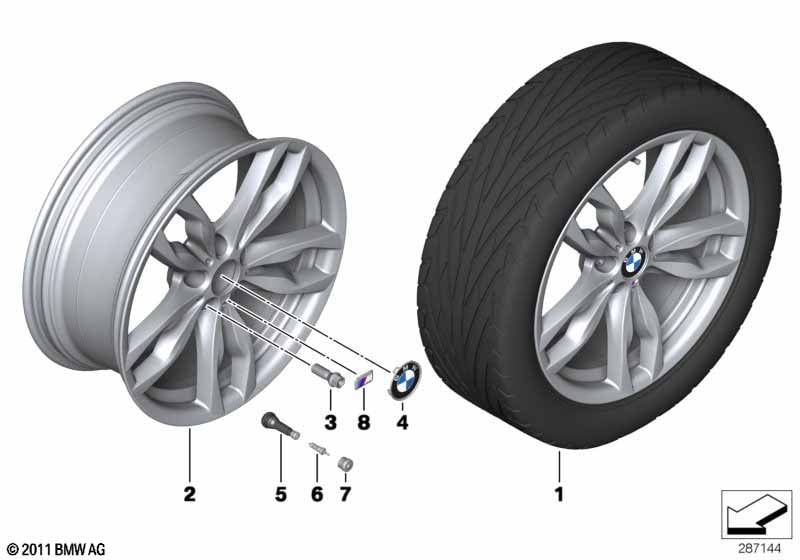

This BMW LA wheel M Double Spoke 434 - 20'' technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel, M Double Spoke 434 |
S2N9A=Yes |
||||||||
| 02 | Light alloy rim Ferricgrey | 8,5JX20 ET:33 | 2 | 36117845867 | Shop at ECS Tuning | |||||
| only for rear axle Mixed tyres |
||||||||||
| 02 | Light alloy rim Ferricgrey | 9JX20 ET:44 | 2 | 36117845868 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 05 | Screw-in valve RDC | 4 | 09/2010 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 07 | Valve caps RDC | 4 | 09/2010 | 36111095436 | $0.35 | Shop at ECS Tuning | ||||
| 08 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
