BMW LA wheel Individual V-Spoke 439-19'' for BMW 3 Series F30 328i (2013)

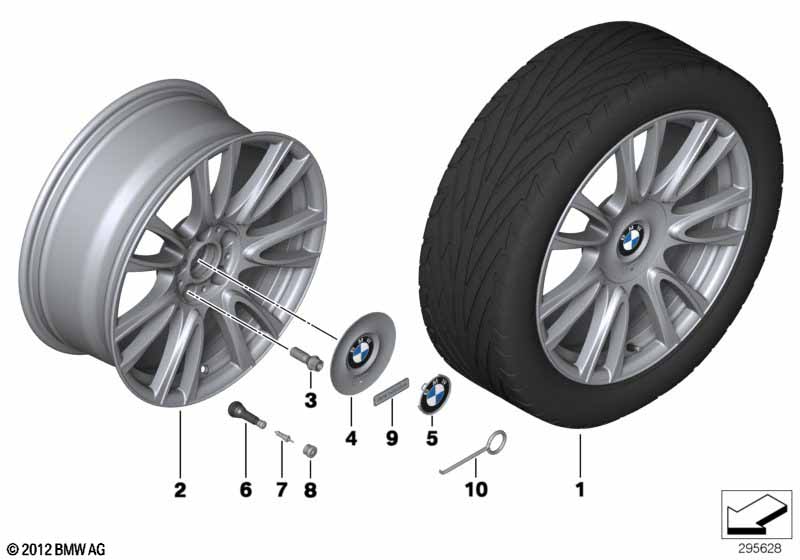

This BMW LA wheel Individual V-Spoke 439-19'' technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel Individual V-Spoke 439 |
S2PRA=Yes |
||||||||
| 02 | Gloss-turned light alloy rim | 8JX19 ET:36 | 2 | 03/2014 | 36117845865 | +core | Shop at ECS Tuning | |||
| 02 | Gloss-turned light alloy rim | 8,5JX19 ET:47 | 2 | 03/2014 | 36117845866 | +core | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Hub cap, silver | D=158MM | 4 | 03/2014 | 36137849424 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped with adhesive film | D=64,5MM | 4 | 03/2014 | 36136767550 | $5.33 | Shop at ECS Tuning | |||
| 06 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| 08 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| 09 | BMW Individual badge | 4 | 03/2014 | 36137897226 | $5.60 | Shop at ECS Tuning | ||||
| 10 | Hub cap puller | 1 | 03/2014 | 36132294421 | $9.86 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
