BMW LA wheel Double Spoke 466 - 19'' for BMW 3 Series F34 GT 320dX (2016)

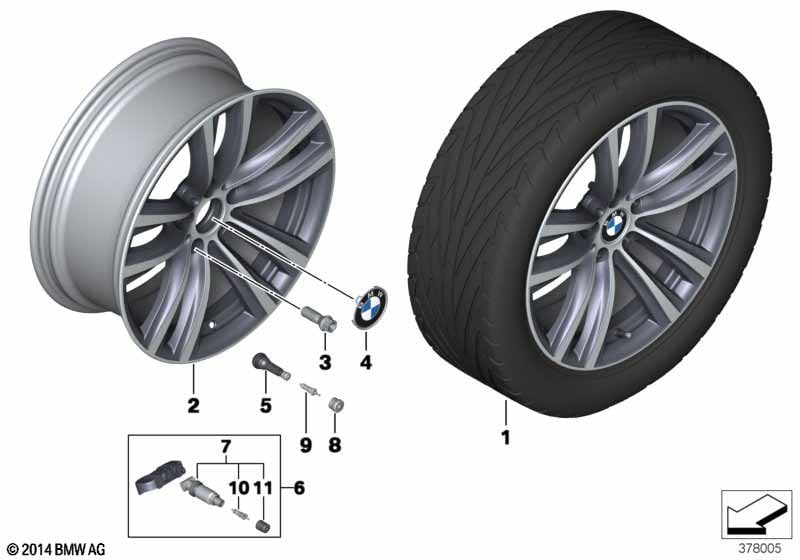

This BMW LA wheel Double Spoke 466 - 19'' technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles registered with EC homologation approval. The selected combination of wheel and tire may require special inspection approval in the vehicle's registration documents. Please consult the specialist department for the vehicle to determine whether certification for the wheel and tire combination has already been issued. If this is not the case then it may be necessary to apply for special approval for highway use in your specific country! For vehicles with BMW LA wheel Double Spoke 466 or BMW LA wheel Double Spoke 466 |
S2L8A=Yes S2T8A=Yes |
||||||||
| For vehicles with BMW LA wheel Double Spoke 466 |
S2L8A=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 9JX19 ET:42 | 2 | 36106854682 | Shop at ECS Tuning | |||||
| Installation on rear axle Mixed tyres |
||||||||||
| For vehicles with BMW LA wheel Double Spoke 466 or BMW LA wheel Double Spoke 466 |
S2L8A=Yes S2T8A=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 8JX19 ET:30 | 2 | 36106854681 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| 07 | Rep. kit, screw valve for RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 09 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve insert for RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| 11 | Valve cap for RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
