BMW LA wheel Radial Spoke 388 - 18'' for BMW 2 Series F22 LCI M240iX (2020)

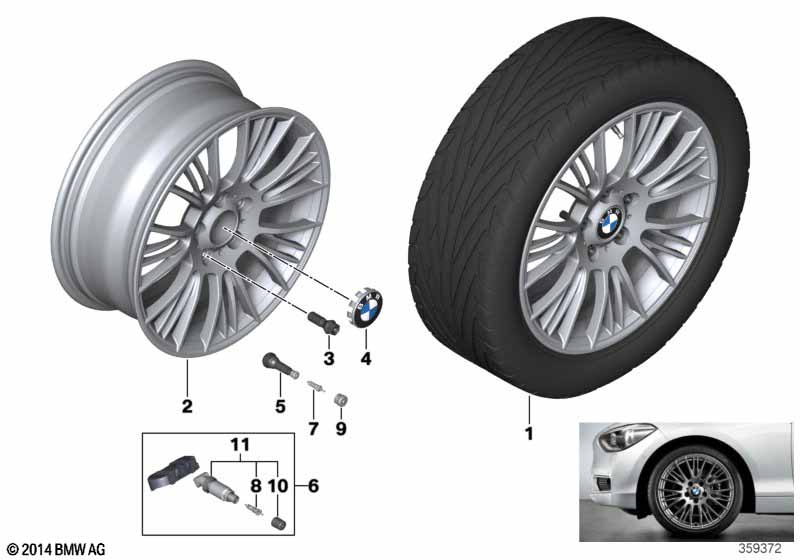

This BMW LA wheel Radial Spoke 388 - 18'' technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 LCI M240iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with 18'' Light-alloy wheel Radial Spoke 388 and National version China |
SZZFA=Yes L8AAA=No |
||||||||
| 02 | Light alloy rim Ferricgrey | 7,5JX18 ET:45 | 2 | 03/2014 | 36116796218 | TÜV 2297454 | Shop at ECS Tuning | |||
| 02 | Light alloy rim Ferricgrey | 8JX18 ET:52 | 2 | 03/2014 | 36116796219 | TÜV 2297454 | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 11/2016 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 11/2016 | 36106876673 | Shop at ECS Tuning | |||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
