BMW LA wheel M Double Spoke 441 - 18'' for BMW 3 Series F30 LCI 320dX (2018)

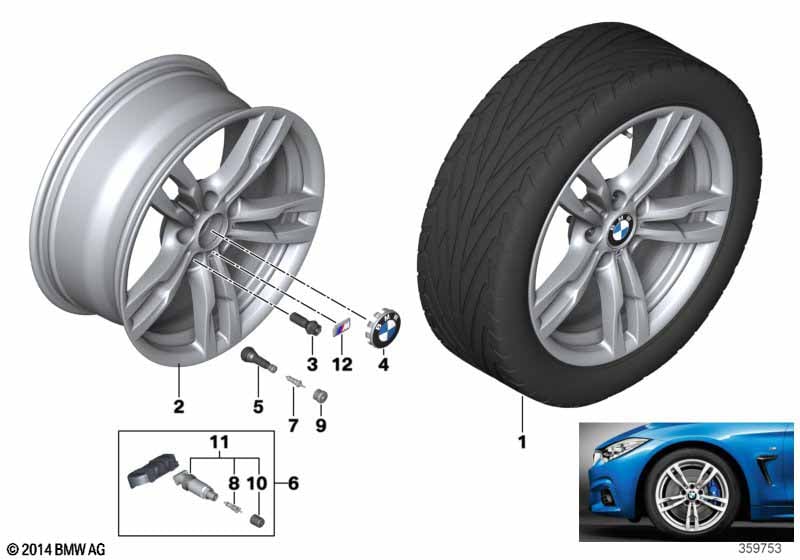

This BMW LA wheel M Double Spoke 441 - 18'' technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel M Double Spoke 441 or BMW LA wheel M Double Spoke 441 or BMW LA wheel M Double Spoke 441 |
S21BA=Yes S2PMA=Yes S2V7A=Yes |
||||||||
| For vehicles with BMW LA wheel M Double Spoke 441 |
S2PMA=Yes |
|||||||||
| 02 | Disk wheel light alloy dekor silver 2 | 8JX18 ET:34 | 4 | 03/2014 | 36117846778 | Shop at ECS Tuning | ||||
| For vehicles with BMW LA wheel M Double Spoke 441 Installation on rear axle Mixed tyres |
S2PMA=Yes |
|||||||||
| 02 | Disk wheel light alloy dekor silver 2 | 8,5JX18 ET:47 | 2 | 03/2014 | 36117846779 | Shop at ECS Tuning | ||||
| For vehicles with BMW LA wheel M Double Spoke 441 |
S21BA=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 8JX18 H2 ET 34 | 4 | 03/2014 | 36117852491 | Shop at ECS Tuning | ||||
| For vehicles with BMW LA wheel M Double Spoke 441 Installation on rear axle Mixed tyres |
S21BA=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 8,5JX18 ET47 | 2 | 03/2014 | 36117852492 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and BMW LA wheel M Double Spoke 441 |
L807A=Yes S2PMA=Yes |
|||||||||
| 02 | Disk wheel light alloy dekor silver 2 | 8JX18 ET:34 | 4 | 03/2014 | 36117846778 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel arch trim, primed, rear left | JAPAN | 1 | 03/2014 | 51127325721 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, rear right | JAPAN | 1 | 03/2014 | 51127325722 | Shop at ECS Tuning | ||||
| -- | Set of adhesive pads | JAPAN | 1 | 03/2014 | 51117324624 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, front left | JAPAN | 1 | 03/2014 | 51117325719 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, front right | JAPAN | 1 | 03/2014 | 51117325720 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and BMW LA wheel M Double Spoke 441 Installation on rear axle Mixed tyres |
L807A=Yes S2PMA=Yes |
|||||||||
| 02 | Disk wheel light alloy dekor silver 2 | 8,5JX18 ET:47 | 2 | 03/2014 | 36117846779 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel arch trim, primed, rear left | JAPAN | 1 | 03/2014 | 51127325721 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, rear right | JAPAN | 1 | 03/2014 | 51127325722 | Shop at ECS Tuning | ||||
| -- | Set of adhesive pads | JAPAN | 1 | 03/2014 | 51117324624 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and BMW LA wheel M Double Spoke 441 |
L807A=Yes S21BA=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 8JX18 H2 ET 34 | 4 | 03/2014 | 36117852491 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel arch trim, primed, rear left | JAPAN | 2 | 03/2014 | 51127325721 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, rear right | JAPAN | 2 | 03/2014 | 51127325722 | Shop at ECS Tuning | ||||
| -- | Set of adhesive pads | JAPAN | 2 | 03/2014 | 51117324624 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, front left | JAPAN | 2 | 03/2014 | 51117325719 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, front right | JAPAN | 2 | 03/2014 | 51117325720 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and BMW LA wheel M Double Spoke 441 Installation on rear axle Mixed tyres |
L807A=Yes S21BA=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 8,5JX18 ET47 | 2 | 03/2014 | 36117852492 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel arch trim, primed, rear left | JAPAN | 2 | 03/2014 | 51127325721 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, rear right | JAPAN | 2 | 03/2014 | 51127325722 | Shop at ECS Tuning | ||||
| -- | Set of adhesive pads | JAPAN | 2 | 03/2014 | 51117324624 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, front left | JAPAN | 2 | 03/2014 | 51117325719 | Shop at ECS Tuning | ||||
| -- | Wheel arch trim, primed, front right | JAPAN | 2 | 03/2014 | 51117325720 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
| 12 | M badge | 4 | 03/2014 | 36112228660 | $6.62 | Shop at ECS Tuning | ||||
