BMW LA wheel Multi-Spoke 399 - 19'' for BMW 4 Series F36 Gran Coupé 420dX (2017)

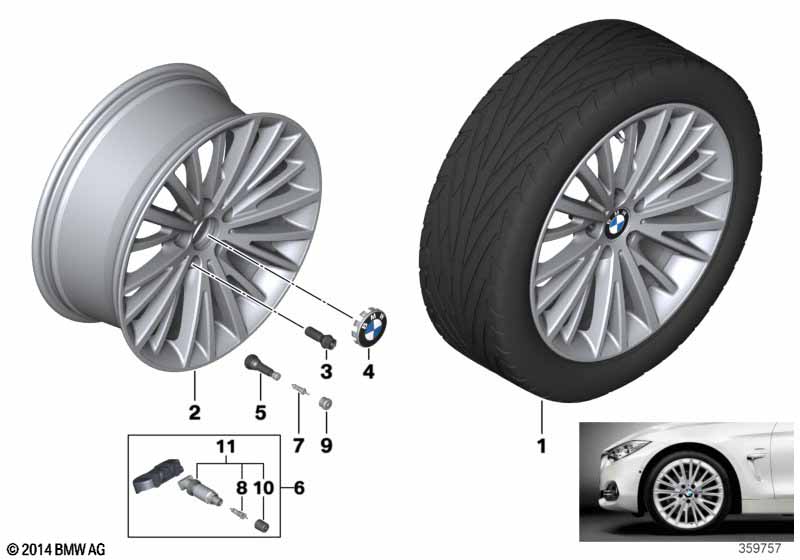

This BMW LA wheel Multi-Spoke 399 - 19'' technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel, Multispoke 399 or BMW LA wheel, Multispoke 399 |
S2L1A=Yes S2W5A=Yes |
||||||||
| For vehicles with BMW LA wheel, Multispoke 399 Installation on rear axle Mixed tyres |
S2L1A=Yes |
|||||||||
| 02 | Gloss-turned light alloy rim | 8,5JX19 ET:47 | 2 | 03/2014 | 36116856219 | Shop at ECS Tuning | ||||
| For vehicles with BMW LA wheel, Multispoke 399 or BMW LA wheel, Multispoke 399 |
S2L1A=Yes S2W5A=Yes |
|||||||||
| 02 | Gloss-turned light alloy rim | 8JX19 ET:36 | 2 | 03/2014 | 36116856218 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F36 Gran Coupé 420dX BMW LA wheel Multi-Spoke 399 - 19''?
- This technical diagram illustrates the BMW LA wheel Multi-Spoke 399 - 19'' within the Wheels group for the 4 Series F36 Gran Coupé 420dX produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Gloss-turned light alloy rim (Part #36116856219).
- Which models use the hardware listed in this BMW LA wheel Multi-Spoke 399 - 19''?
- The hardware and components featured in the BMW LA wheel Multi-Spoke 399 - 19'' are specific to the 4 Series F36 Gran Coupé 420dX produced during 2017. These technical specifications ensure that parts like the Gloss-turned light alloy rim (36116856219) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel Multi-Spoke 399 - 19'' assembly?
- Each item in the BMW LA wheel Multi-Spoke 399 - 19'' corresponds to the numbered list below the illustration. For the 4 Series F36 Gran Coupé 420dX, you can identify the Gloss-turned light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116856219 for the Wheels section.
