MINI LA wheel Radial Spoke 508 for BMW MINI Cabrio F57 One (2017)

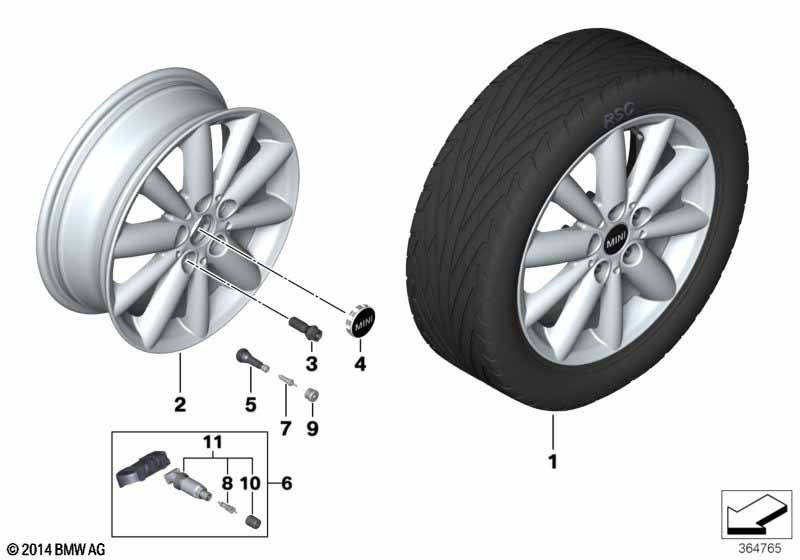

This MINI LA wheel Radial Spoke 508 technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. In member states of the EU and in Switzerland the excerpt from the EU type approval (available in wheel/tire sets on the EF homepage and/or on the Commercial Service Data DVD, in Germany also in the Infonet under BMW > Aftersales > Zubehör > Gutachten) is to be remitted to the customer. It may be necessary to amend the vehicle's official documents in specific individual countries. For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with Sport brake system ONLY FOR WINTER TYRES |
SZZDA=No |
|||||||||
| 02 | Light alloy rim, black | 5,5JX16 ET:46 | 4 | 36116866674 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Sports brake retrofit kit | F56 JCW | X | 34112352872 | Shop at ECS Tuning | |||||
| Unicolor | ||||||||||
| 02 | Light alloy rim, silver | 5,5JX16 ET:46 | 4 | 36116855117 | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Sports brake retrofit kit | F56 JCW | X | 34112352872 | TÜV 2354561 | Shop at ECS Tuning | ||||
| Unicolor | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | MINI | 4 | 36136857149 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
