MINI LA wheel Track Spoke 562 - 17'' for BMW MINI F56 Cooper (2015)

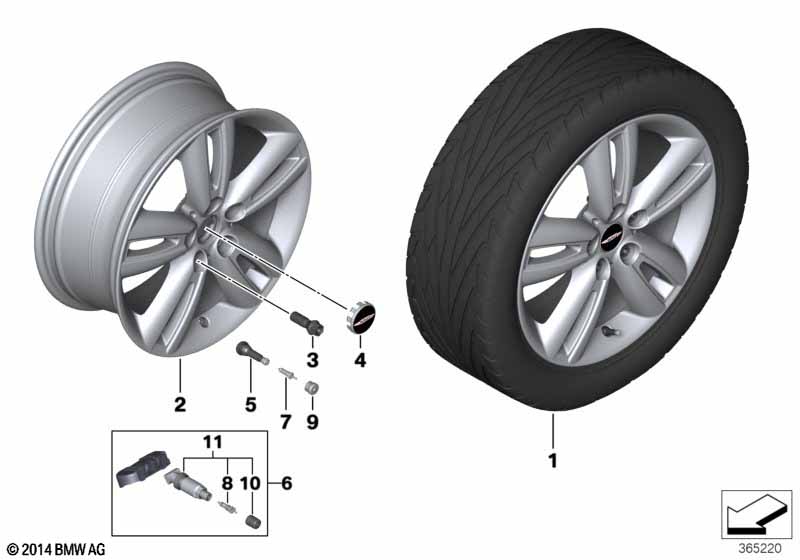

This MINI LA wheel Track Spoke 562 - 17'' technical drawing provides a detailed breakdown of the assembly for the MINI F56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with MINI li.-al.w.Track Spoke black/run-flat or MINI LA wheel Track Spoke silver or MINI LA wheel Track Spoke black |
S1NFA=Yes S2HVA=Yes S2HWA=Yes |
||||||||
| For vehicles with MINI LA wheel Track Spoke silver and Sport brake system |
S2HVA=Yes SZZDA=No |
|||||||||
| 02 | Light alloy rim, silver | 7JX17 ET:54 | 4 | 36116858899 | Shop at ECS Tuning | |||||
| For vehicles with MINI li.-al.w.Track Spoke black/run-flat or MINI LA wheel Track Spoke black and Sport brake system |
S1NFA=Yes S2HWA=Yes SZZDA=No |
|||||||||
| 02 | Light alloy rim, black | 7JX17 ET:54 | 4 | 36116866366 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap JOHN COOPER WORKS | JCW | 4 | 36106861092 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
