BMW LA wheel M double spoke 598M- 19" for BMW 3 Series F34 GT LCI 330i (2019)

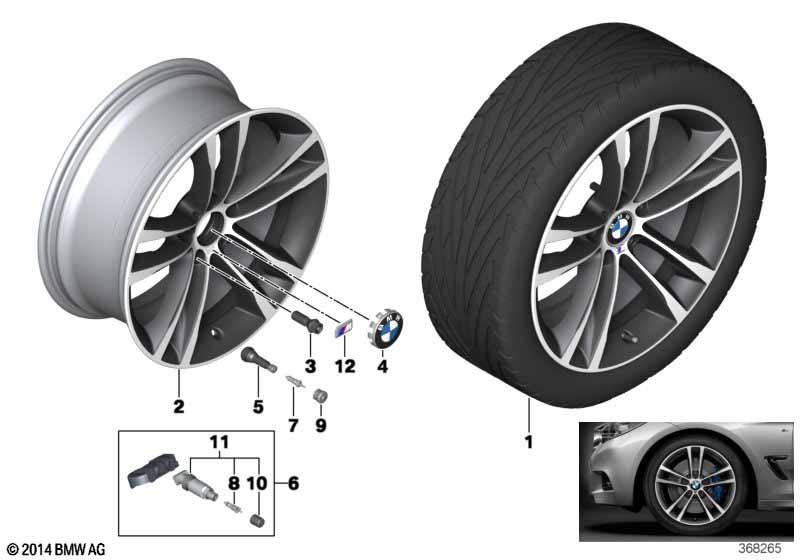

This BMW LA wheel M double spoke 598M- 19" technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel M Double Spoke 598 |
S2V5A=Yes |
||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 8JX19 ET:30 | 2 | 03/2014 | 36117847543 | Shop at ECS Tuning | ||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8JX19 ET:30 | 2 | 03/2014 | 36118094686 | Shop at ECS Tuning | ||||
| Installation on rear axle | ||||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 9JX19 ET:42 | 2 | 03/2014 | 36117847544 | Shop at ECS Tuning | ||||
| Mixed tyres | ||||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 9JX19 ET:42 | 2 | 03/2014 | 36118094687 | Shop at ECS Tuning | ||||
| Mixed tyres | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
| 12 | M badge | 4 | 03/2014 | 36112228660 | $6.62 | Shop at ECS Tuning | ||||
