Compact spare wheel, steel, black for BMW 2 Series F46 Gran Tourer LCI 218i (2022)

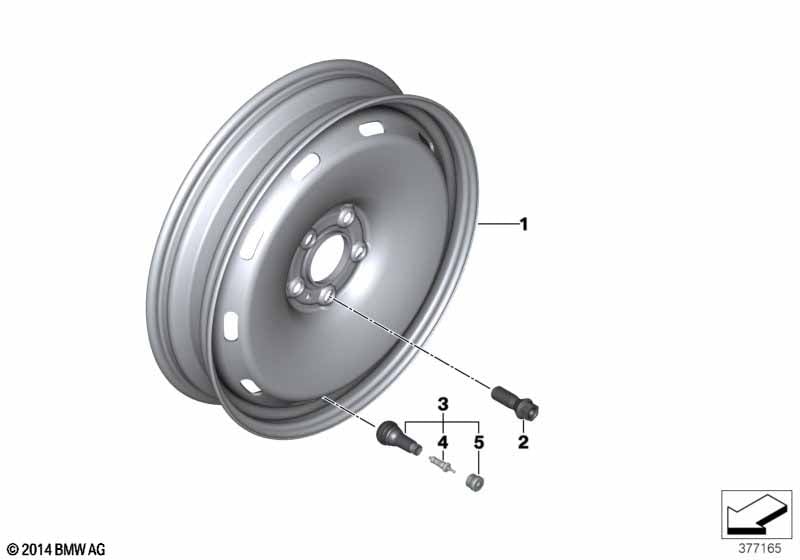

This Compact spare wheel, steel, black technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emergency spare wheel |
S300A=Yes |
||||||||
| 01 | Compact spare wheel, steel, black | 3,5BX17 ET:18 | 1 | 36115A062D8 | Shop at ECS Tuning | |||||
| 02 | Wheel bolt black | M14X1,25 | 5 | 36136890324 | Shop at ECS Tuning | |||||
| 03 | Rubber valve | L=48,5MM | 1 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 04 | Valve | 1 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 05 | Valve caps | 1 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer LCI 218i Compact spare wheel, steel, black?
- This technical diagram illustrates the Compact spare wheel, steel, black within the Wheels group for the 2 Series F46 Gran Tourer LCI 218i produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Compact spare wheel, steel, black (Part #36115A062D8).
- Which models use the hardware listed in this Compact spare wheel, steel, black?
- The hardware and components featured in the Compact spare wheel, steel, black are specific to the 2 Series F46 Gran Tourer LCI 218i produced during 2022. These technical specifications ensure that parts like the Compact spare wheel, steel, black (36115A062D8) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Compact spare wheel, steel, black assembly?
- Each item in the Compact spare wheel, steel, black corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer LCI 218i, you can identify the Compact spare wheel, steel, black by locating its position on the schematic, which then links to the official BMW part number 36115A062D8 for the Wheels section.
