MINI LA wheel Victory Spoke 495 - 16'' for BMW MINI F56 One (2021)

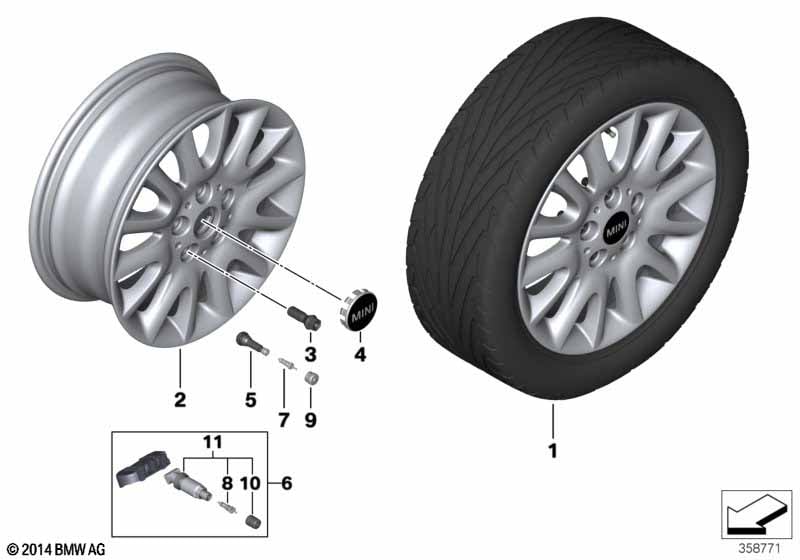

This MINI LA wheel Victory Spoke 495 - 16'' technical drawing provides a detailed breakdown of the assembly for the MINI F56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with MINI li.-al.w.Victory Spoke bl./run-flat or MINI LA wheel Victory Spoke silver or MINI LA wheel Victory Spoke black |
S1NBA=Yes S2GYA=Yes S2GZA=Yes |
||||||||
| For vehicles with MINI LA wheel Victory Spoke silver and Sport brake system |
S2GYA=Yes SZZDA=No |
|||||||||
| 02 | Light alloy rim, silver | 6,5JX16 ET:54 | 4 | 36116855104 | Shop at ECS Tuning | |||||
| For vehicles with MINI li.-al.w.Victory Spoke bl./run-flat or MINI LA wheel Victory Spoke black and Sport brake system |
S1NBA=Yes S2GZA=Yes SZZDA=No |
|||||||||
| 02 | Light alloy rim, black | 6,5JX16 ET:54 | 4 | 36116855106 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | MINI | 4 | 36136857149 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
