MINI LA wheel Propeller Spoke 503 - 17'' for BMW MINI F56 Cooper (2021)

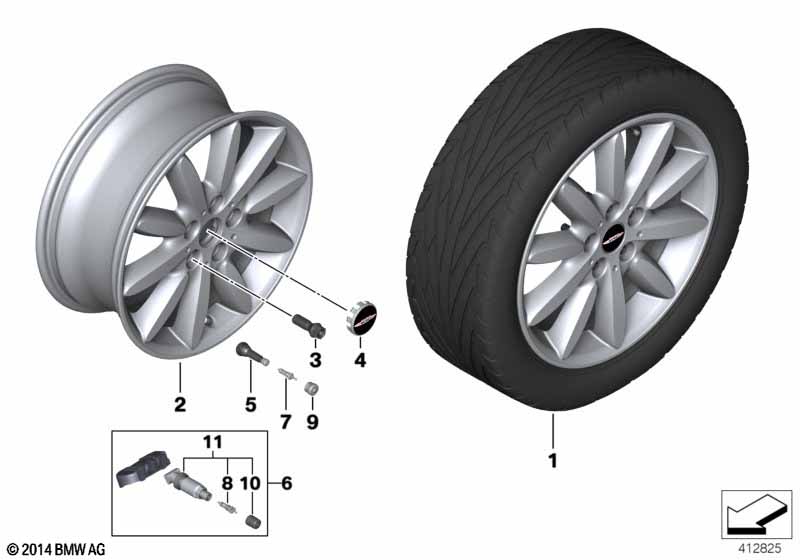

This MINI LA wheel Propeller Spoke 503 - 17'' technical drawing provides a detailed breakdown of the assembly for the MINI F56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with MINI l.a.wh.Propeller Sp.2-tone/run-flat or MINI LA wheel Propeller Spoke 2-tone |
S1NLA=Yes S2HNA=Yes |
||||||||
| For vehicles with Sport brake system |
SZZDA=No |
|||||||||
| 02 | Disc wheel light alloy night black | 7JX17 ET54 | 4 | 36116855112 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | MINI | 4 | 36136857149 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 Cooper MINI LA wheel Propeller Spoke 503 - 17''?
- This technical diagram illustrates the MINI LA wheel Propeller Spoke 503 - 17'' within the Wheels group for the MINI F56 Cooper produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Disc wheel light alloy night black (Part #36116855112).
- Which models use the hardware listed in this MINI LA wheel Propeller Spoke 503 - 17''?
- The hardware and components featured in the MINI LA wheel Propeller Spoke 503 - 17'' are specific to the MINI F56 Cooper produced during 2021. These technical specifications ensure that parts like the Disc wheel light alloy night black (36116855112) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the MINI LA wheel Propeller Spoke 503 - 17'' assembly?
- Each item in the MINI LA wheel Propeller Spoke 503 - 17'' corresponds to the numbered list below the illustration. For the MINI F56 Cooper, you can identify the Disc wheel light alloy night black by locating its position on the schematic, which then links to the official BMW part number 36116855112 for the Wheels section.
