BMW LA wheel Double Spoke 473 - 16'' for BMW 2 Series F45 Active Tourer LCI 216d (2021)

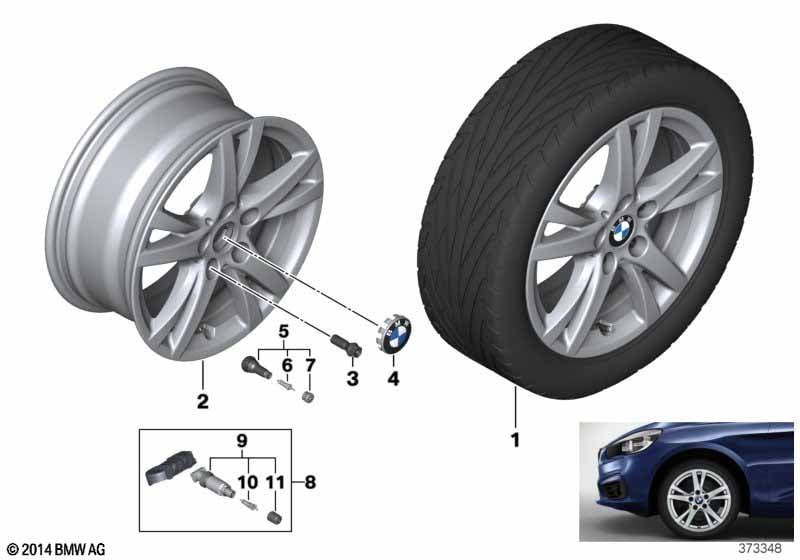

This BMW LA wheel Double Spoke 473 - 16'' technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with 16" light-al.whl.dbl.spoke 473 w.eme.op. or BMW LA wheel Double-spoke 473 |
S26LA=Yes S2U6A=Yes |
||||||||
| 02 | Light alloy rim, black | 7JX16 ET52 | 4 | 36116874641 | Shop at ECS Tuning | |||||
| For vehicles with 16" light-al.whl.dbl.spoke 473 w.eme.op. or BMW LA wheel Double-spoke 473 |
S26LA=Yes S2U6A=Yes |
|||||||||
| 02 | Disc wheel, light alloy, reflex-silber | 7JX16 ET:52 | 4 | 36116855082 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
| 10 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| 11 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer LCI 216d BMW LA wheel Double Spoke 473 - 16''?
- This technical diagram illustrates the BMW LA wheel Double Spoke 473 - 16'' within the Wheels group for the 2 Series F45 Active Tourer LCI 216d produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim, black (Part #36116874641).
- Which models use the hardware listed in this BMW LA wheel Double Spoke 473 - 16''?
- The hardware and components featured in the BMW LA wheel Double Spoke 473 - 16'' are specific to the 2 Series F45 Active Tourer LCI 216d produced during 2021. These technical specifications ensure that parts like the Light alloy rim, black (36116874641) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel Double Spoke 473 - 16'' assembly?
- Each item in the BMW LA wheel Double Spoke 473 - 16'' corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer LCI 216d, you can identify the Light alloy rim, black by locating its position on the schematic, which then links to the official BMW part number 36116874641 for the Wheels section.
