BMW LA wheel Y-Spoke 480 - 17'' for BMW 2 Series F45 Active Tourer LCI 220dX (2021)

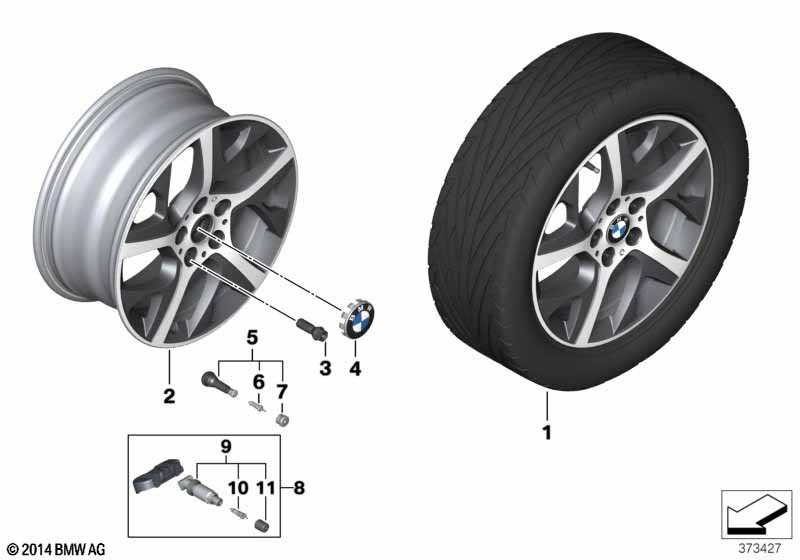

This BMW LA wheel Y-Spoke 480 - 17'' technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with BMW LA wheel Y-spoke 480 |
S2LUA=Yes |
||||||||
| 02 | Gloss-turned light alloy rim | 7,5JX17 ET:54 | 4 | 36116855089 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
| 10 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| 11 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer LCI 220dX BMW LA wheel Y-Spoke 480 - 17''?
- This technical diagram illustrates the BMW LA wheel Y-Spoke 480 - 17'' within the Wheels group for the 2 Series F45 Active Tourer LCI 220dX produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Gloss-turned light alloy rim (Part #36116855089).
- Which models use the hardware listed in this BMW LA wheel Y-Spoke 480 - 17''?
- The hardware and components featured in the BMW LA wheel Y-Spoke 480 - 17'' are specific to the 2 Series F45 Active Tourer LCI 220dX produced during 2021. These technical specifications ensure that parts like the Gloss-turned light alloy rim (36116855089) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel Y-Spoke 480 - 17'' assembly?
- Each item in the BMW LA wheel Y-Spoke 480 - 17'' corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer LCI 220dX, you can identify the Gloss-turned light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116855089 for the Wheels section.
