BMW LA wheel M Double Spoke 486M - 18' for BMW 2 Series F46 Gran Tourer LCI 216d (2022)

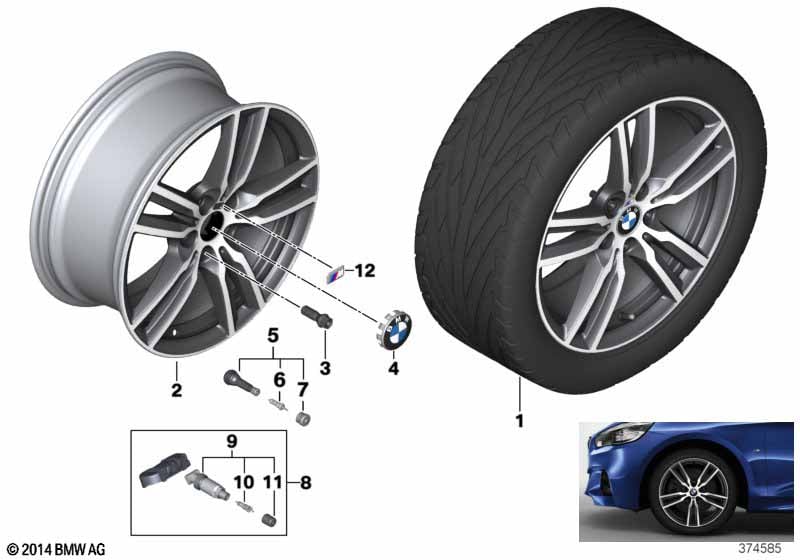

This BMW LA wheel M Double Spoke 486M - 18' technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with BMW LA wheel M dbl.spoke 486 w.em.op. or BMW LA wheel, M Double-spoke 486 |
S20PA=Yes S2TUA=Yes |
||||||||
| For vehicles with BMW LA wheel M dbl.spoke 486 w.em.op. or BMW LA wheel, M Double-spoke 486 |
S20PA=Yes S2TUA=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 8JX18 ET:57 | 4 | 36117848602 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
| 10 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| 11 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 12 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer LCI 216d BMW LA wheel M Double Spoke 486M - 18'?
- This technical diagram illustrates the BMW LA wheel M Double Spoke 486M - 18' within the Wheels group for the 2 Series F46 Gran Tourer LCI 216d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim Ferricgrey (Part #36117848602).
- Which models use the hardware listed in this BMW LA wheel M Double Spoke 486M - 18'?
- The hardware and components featured in the BMW LA wheel M Double Spoke 486M - 18' are specific to the 2 Series F46 Gran Tourer LCI 216d produced during 2022. These technical specifications ensure that parts like the Light alloy rim Ferricgrey (36117848602) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel M Double Spoke 486M - 18' assembly?
- Each item in the BMW LA wheel M Double Spoke 486M - 18' corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer LCI 216d, you can identify the Light alloy rim Ferricgrey by locating its position on the schematic, which then links to the official BMW part number 36117848602 for the Wheels section.
