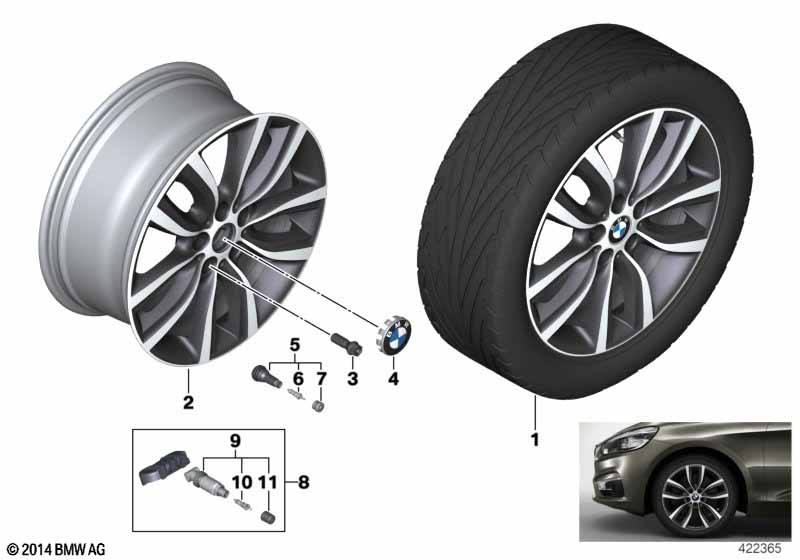

BMW LA wheel V-Spoke 485 - 18'' for BMW 2 Series F45 Active Tourer 220d (2018)
This BMW LA wheel V-Spoke 485 - 18'' technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with BMW LA wheel V-spoke 485 |
S2FZA=Yes |
||||||||
| 02 | Light alloy rim Ferricgrey | 8JX18 ET:57 | 4 | 36116855094 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
| 10 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| 11 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
