M contour (styl.23) for BMW 3 Series E36 318i (1998)

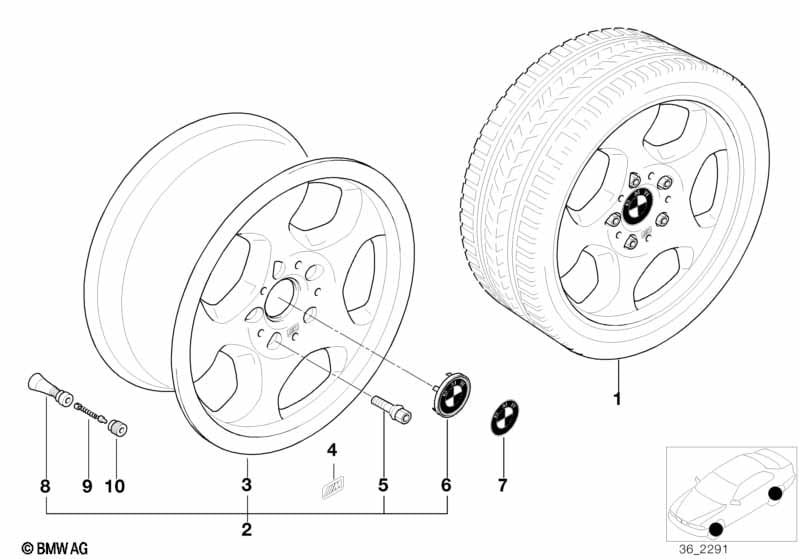

This M contour (styl.23) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set complete alloy wheels summer | 225/45R17 91W | 1 | 36119415441 | ENDED, +core, TÜV 0017318 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH INSTALLATION KIT STEERING ANGLE STOP |
||||||||||
| VARIOUS WHEEL SIZES FRONT AXLE 7 1/2JX17 REAR AXLE 8 1/2JX17 |
||||||||||
| 01 | Set complete alloy wheels summer | 235/40ZR17 | 1 | 85229409835 | ENDED, TÜV 9788978 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH INSTALLATION KIT STEERING ANGLE STOP INSTALLING SET SPORTS SUSPENSION LABEL "TIRE PRESSURE" |
||||||||||
| DIFFERENT TIRE SIZE FRONT AXLE 225/45ZR17 REAR AXLE 245/40ZR17 |
||||||||||
| 01 | Set complete alloy wheels summer | 1 | 85229409976 | TÜV 0017318 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH INSTALLATION KIT STEERING ANGLE STOP |
||||||||||
| 02 | Light alloy rim | 71/2JX17 ET:41 | 4 | 85329409845 | $464.95 | TÜV 0017318, TÜV 9790121, TÜV 9790123 | Shop at ECS Tuning | |||
| 02 | Light alloy rim | 81/2JX17 ET:41 | 2 | 85329409846 | $530.10 | TÜV 0017318, TÜV 9790121 | Shop at ECS Tuning | |||
| 03 | Light alloy rim | 71/2JX17 ET:41 | 4 | 36112227895 | $302.95 | TÜV 0017318, TÜV 9790121, TÜV 9790123 | Shop at ECS Tuning | |||
| 03 | Light alloy rim | 81/2JX17 ET:41 | 2 | 36112227995 | $335.95 | +core, TÜV 0017318, TÜV 9790121 | Shop at ECS Tuning | |||
| 04 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 07 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 09 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
