M double-spoke,forged for BMW 3 Series E36 323i (1999)

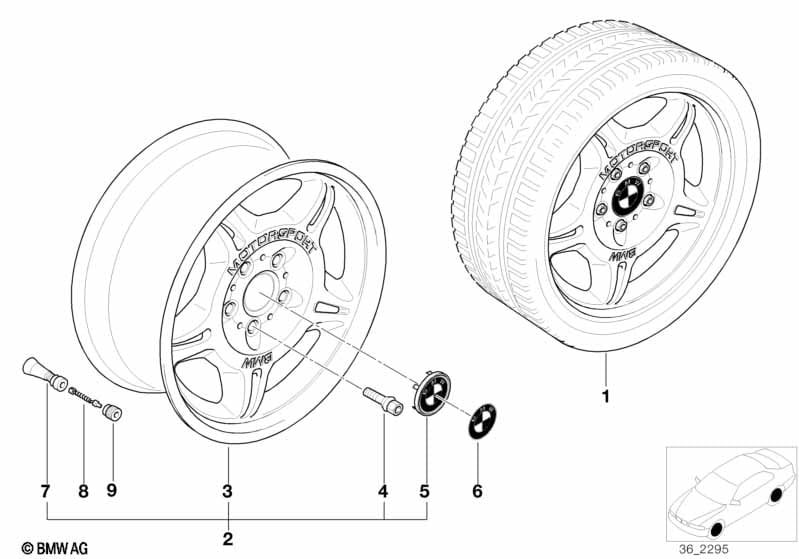

This M double-spoke,forged technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Alloy rim forged | 71/2JX17 ET:41 | 4 | 36112227350 | $537.00 | ENDED, +core, TÜV 0017318, TÜV 9790121, TÜV 9790123 | Shop at ECS Tuning | |||
| 03 | Alloy rim forged | 81/2JX17 ET:41 | 2 | 36112227360 | $594.00 | ENDED, +core, TÜV 0017318, TÜV 9790121 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
