BMW-styling II (styl.34) for BMW 3 Series E36 328i (1998)

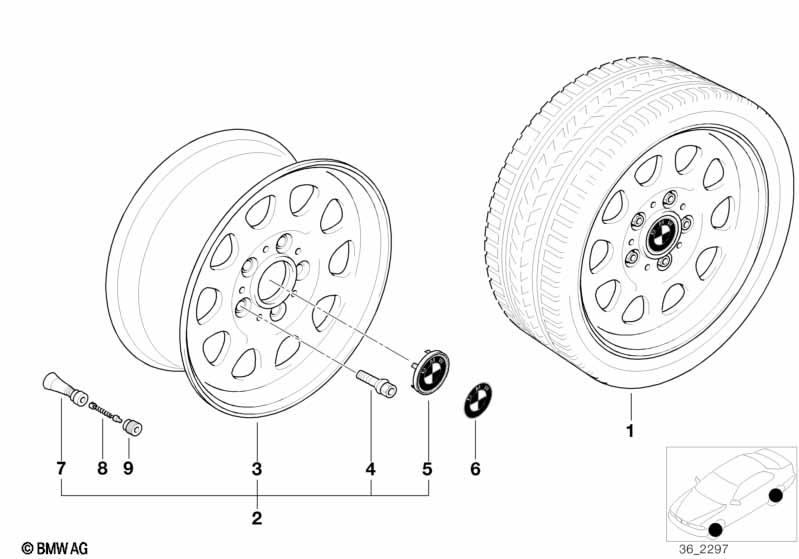

This BMW-styling II (styl.34) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Light alloy rim | 7JX15 ET:47 | 4 | 36111092175 | $248.95 | +core | Shop at ECS Tuning | |||
| 05 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i BMW-styling II (styl.34)?
- This technical diagram illustrates the BMW-styling II (styl.34) within the Wheels group for the 3 Series E36 328i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36111092175).
- Which models use the hardware listed in this BMW-styling II (styl.34)?
- The hardware and components featured in the BMW-styling II (styl.34) are specific to the 3 Series E36 328i produced during 1998. These technical specifications ensure that parts like the Light alloy rim (36111092175) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW-styling II (styl.34) assembly?
- Each item in the BMW-styling II (styl.34) corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36111092175 for the Wheels section.
