Cross-spoke styling (styl.17) for BMW 3 Series E36 318is (1995)

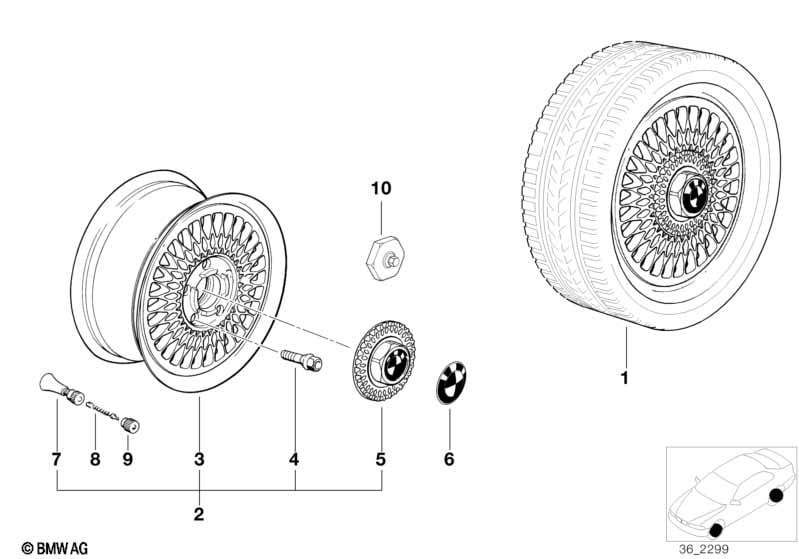

This Cross-spoke styling (styl.17) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Light alloy rim | 7JX16 ET:45 | 4 | 36111180410 | $290.95 | TÜV 0004459 | Shop at ECS Tuning | |||
| 03 | Gloss-turned light alloy rim | 7JX15 ET:47 | 4 | 36112227739 | $276.95 | Shop at ECS Tuning | ||||
| 03 | Light alloy rim | 7JX15 ET:47 | 4 | 36121180448 | $248.95 | +core, TÜV 9789069 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | 4 | 36131180777 | $19.50 | +core | Shop at ECS Tuning | ||||
| 06 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 10 | Hub cap wrench | SW=17MM | 1 | 36131180626 | $8.82 | Shop at ECS Tuning |
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- +core = plus core charge (possibility of a return of the old part)
