Z-star (styl.35) for BMW 3 Series E36 318ti (1996)

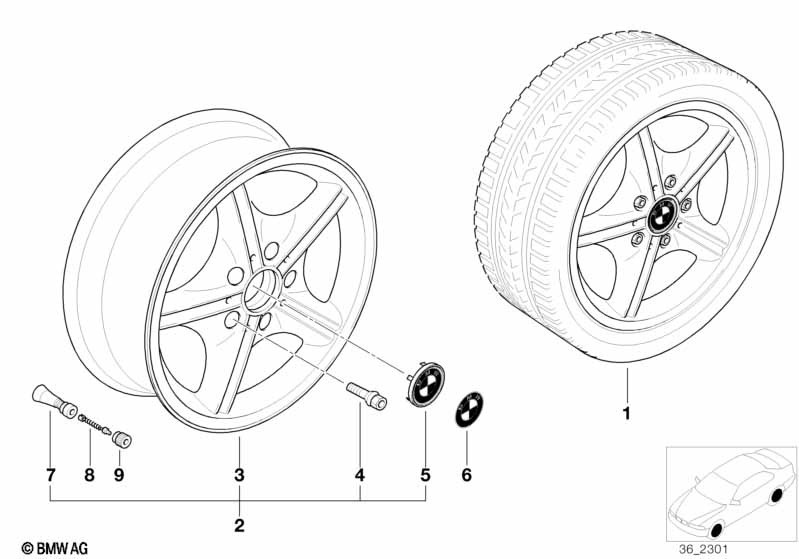

This Z-star (styl.35) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Complete wheel set, summer chromed | 225/50ZR16 | 1 | 85229410988 | TÜV 9413750 | Shop at ECS Tuning | ||||
| Tires Continental ONLY IN CONJUNCTION WITH INSTALLATION KIT STEERING ANGLE STOP |
||||||||||
| 03 | Light alloy rim, chromium-plated | 7JX16 ET:46 | 4 | 36111092230 | $455.95 | TÜV 9413750 | Shop at ECS Tuning | |||
| 03 | Light alloy rim | 7JX16 ET:46 | 4 | 36111092260 | $264.95 | ENDED, +core, TÜV 0004459 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
