Ellipsoidal styling (styl.26) for BMW 3 Series E36 318is (1998)

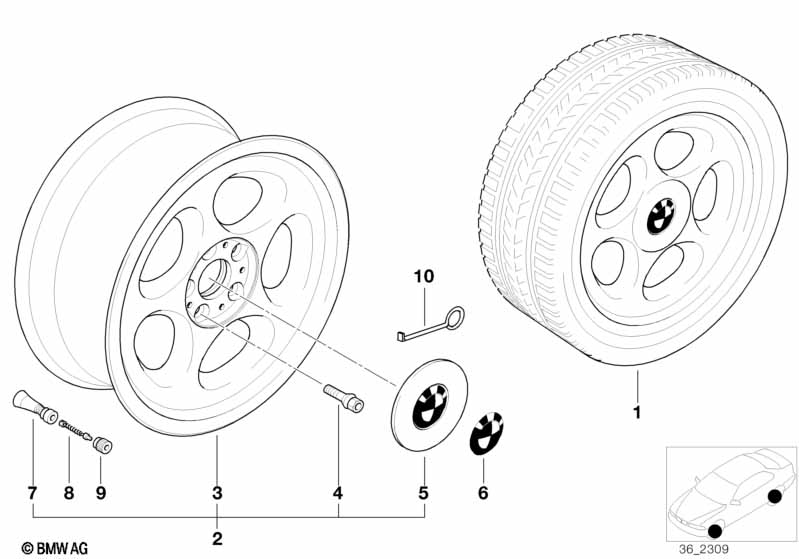

This Ellipsoidal styling (styl.26) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set complete alloy wheels summer | 225/50ZR16 | 1 | 85229409729 | TÜV 9788589, TÜV 9789063, TÜV 9789308, TÜV 9789309 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH INSTALLATION KIT STEERING ANGLE STOP LABEL "TIRE PRESSURE" |
||||||||||
| 02 | Light alloy rim | 7JX16 ET:46 | 4 | 85329409727 | $368.28 | TÜV 9788589, TÜV 9789063, TÜV 9789308, TÜV 9789309 | Shop at ECS Tuning | |||
| 03 | Light alloy rim | 7JX16 ET:46 | 4 | 36111182530 | $264.95 | +core, TÜV 0004459 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| For vehicles with National version south africa |
L824A=Yes |
|||||||||
| 04 | Wheel bolt black | X | 36132902779 | Shop at ECS Tuning | ||||||
| 05 | Hub cap | 4 | 36131182542 | $19.50 | Shop at ECS Tuning | |||||
| 06 | BMW plaque with adhesive film | D=58MM | 4 | 36131181081 | $5.85 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with National version south africa |
L824A=Yes |
|||||||||
| 07 | Rubber valve | 4 | 36122904161 | Shop at ECS Tuning | ||||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 10 | Hub cap puller | 1 | 36132294421 | $9.86 | Shop at ECS Tuning | |||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- +core = plus core charge (possibility of a return of the old part)
