7-spoke composite wheel (styl.19) for BMW 3 Series E36 325tds (1998)

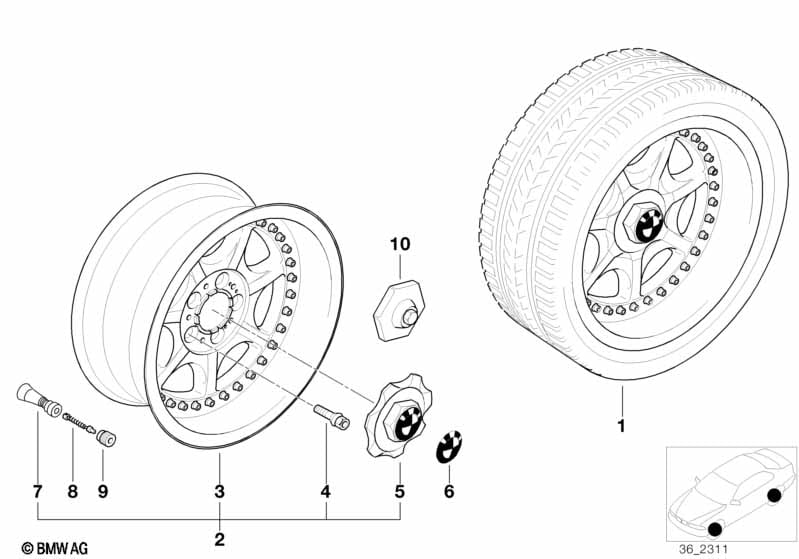

This 7-spoke composite wheel (styl.19) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set complete alloy wheels summer | 235/40ZR17 | 1 | 85229409725 | ENDED, TÜV 9790121 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH INSTALLATION KIT STEERING ANGLE STOP INSTALLING SET SPORTS SUSPENSION LABEL "TIRE PRESSURE" |
||||||||||
| 02 | Two-piece light alloy rim | 71/2JX17 ET:41 | 4 | 85329409723 | $770.04 | TÜV 0017318, TÜV 9790121, TÜV 9790123 | Shop at ECS Tuning | |||
| 03 | Two-piece light alloy rim | 71/2JX17 ET:41 | 4 | 36111182482 | $469.95 | +core, TÜV 0017318, TÜV 9790121, TÜV 9790123 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | 4 | 36131182309 | $22.50 | Shop at ECS Tuning | |||||
| 06 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 10 | Hub cap wrench | SW=17MM | 1 | 36131180626 | $8.82 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- +core = plus core charge (possibility of a return of the old part)
