BMW light alloy wheel, star spoke 64 for BMW 3 Series E36 320i (1995)

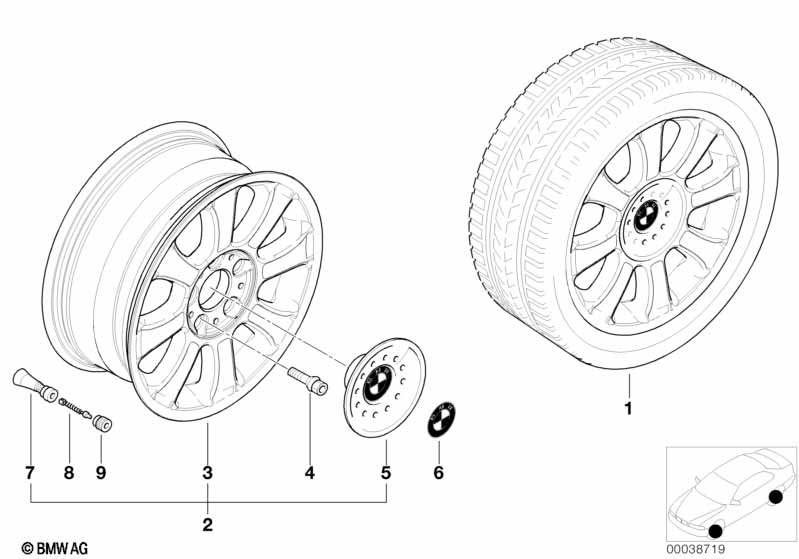

This BMW light alloy wheel, star spoke 64 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Tires Dunlop | ||||||||||
| 01 | Set complete alloy wheels summer | 225/50ZR16 | 1 | 36119416278 | ENDED, +core, TÜV 0004459, TÜV 0004460 | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH INSTALLATION KIT STEERING ANGLE STOP |
||||||||||
| 02 | Light alloy rim | 7JX16 ET:46 | 4 | 36119416244 | $347.95 | ENDED, +core, TÜV 0004459, TÜV 0004460 | Shop at ECS Tuning | |||
| 03 | Light alloy rim | 7JX16 ET:46 | 4 | 36111096232 | $264.95 | +core, TÜV 0004459 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | 4 | 36131094877 | $19.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
