Star-spoke styling II (styl.10) for BMW 3 Series E36 328i (1999)

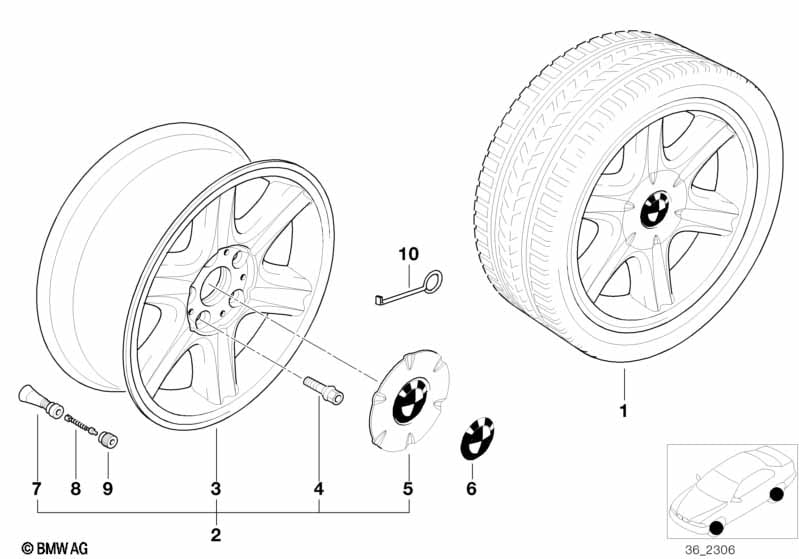

This Star-spoke styling II (styl.10) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Light alloy rim | 7JX15 ET:47 | 4 | 36111092587 | $248.95 | +core, TÜV 9788922 | Shop at ECS Tuning | |||
| 03 | Light alloy rim | 71/2JX17 ET:41 | 4 | 36111182731 | $302.95 | ENDED, TÜV 0017318, TÜV 9790121, TÜV 9790123 | Shop at ECS Tuning | |||
| 03 | Light alloy rim | 7JX16 ET:46 | 4 | 36111182733 | $352.17 | TÜV 0004459 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | 4 | 36131182766 | $19.50 | Shop at ECS Tuning | |||||
| 06 | BMW plaque with adhesive film | D=58MM | 4 | 36131181081 | $5.85 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 10 | Hub cap puller | 1 | 36132294421 | $9.86 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Star-spoke styling II (styl.10)?
- This technical diagram illustrates the Star-spoke styling II (styl.10) within the Wheels group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36111092587).
- Which models use the hardware listed in this Star-spoke styling II (styl.10)?
- The hardware and components featured in the Star-spoke styling II (styl.10) are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Light alloy rim (36111092587) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Star-spoke styling II (styl.10) assembly?
- Each item in the Star-spoke styling II (styl.10) corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36111092587 for the Wheels section.
