BMW LA wheel Multi-Spoke 629 - 21'' for BMW 7 Series G12 740Li (2018)

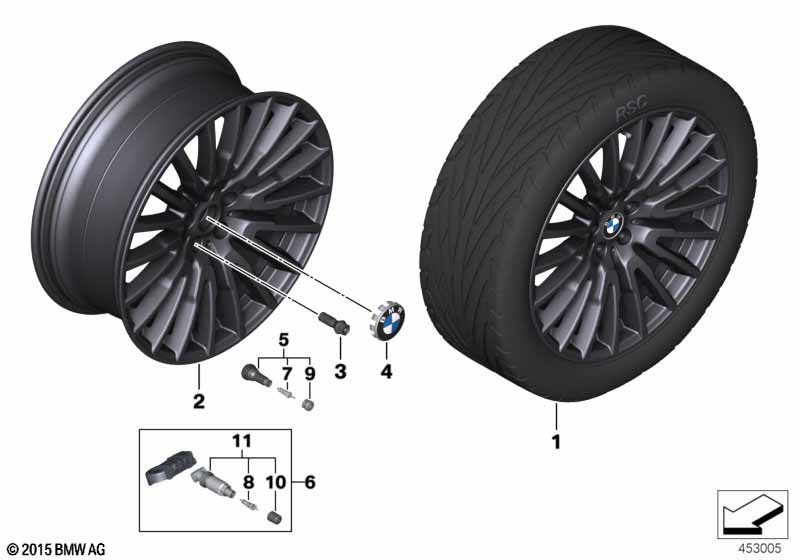

This BMW LA wheel Multi-Spoke 629 - 21'' technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. In member states of the EU and in Switzerland the excerpt from the EU type approval (available in wheel/tire sets on the EF homepage and/or on the Commercial Service Data DVD, in Germany also in the Infonet under BMW > Aftersales > Zubehör > Gutachten) is to be remitted to the customer. It may be necessary to amend the vehicle's official documents in specific individual countries. For vehicles with 21" LMR Vielspeiche 629 and National version China |
SZYAA=Yes L8AAA=No |
||||||||
| 02 | Disk wheel, light-alloy, liquid black | 8,5JX21 ET:25 | 2 | 36116869013 | ENDED | Shop at ECS Tuning | ||||
| 02 | Disk wheel, light-alloy, liquid black | 10JX21 ET:41 | 2 | 36116869014 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gloss-turned light alloy rim | 8,5JX21 ET:25 | 2 | 36116863112 | Shop at ECS Tuning | |||||
| 02 | Gloss-turned light alloy rim | 10JX21 ET:41 | 2 | 36116863113 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Tire pressure display |
L807A=No S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Tire pressure display |
L807A=Yes S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
