MINI LA wheel star spoke 521 - 18" for BMW MINI Clubman F54 Cooper (2019)

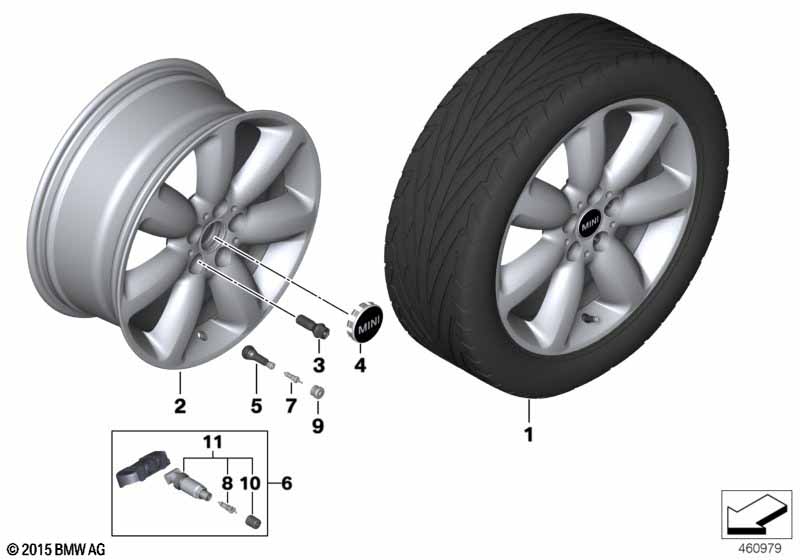

This MINI LA wheel star spoke 521 - 18" technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with MINI LA wheel Star Spoke silver or MINI LA wheel Star Spoke black or MINI LA wheel Star Spoke black or MINI LA wheel Star Spoke silver emer.op. |
S1TVA=Yes S1TWA=Yes S2EVA=Yes S2EWA=Yes |
||||||||
| 01 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with MINI LA wheel Star Spoke silver or MINI LA wheel Star Spoke silver emer.op. |
S1TVA=Yes S2EWA=Yes |
|||||||||
| 02 | Disc wheel, light alloy, Brightsilver | 8J X 18 ET 57 | 4 | 36116856050 | Shop at ECS Tuning | |||||
| For vehicles with MINI LA wheel Star Spoke black or MINI LA wheel Star Spoke black |
S1TWA=Yes S2EVA=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8J X 18 ET 57 | 4 | 36116856053 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | MINI | 4 | 36136857149 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
