BMW LA wheel multi-spoke 633 - 19" for BMW 5 Series G30 LCI 520d (2020)

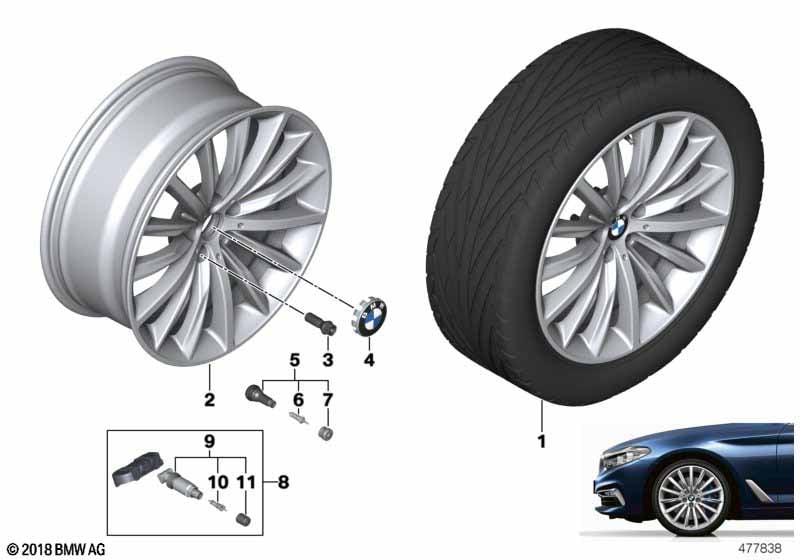

This BMW LA wheel multi-spoke 633 - 19" technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with BMW LA wheel, W-spoke, 633 RS or BMW LA wheel multi-spoke 633 RS/emer.op. or BMW LA wheel multi-spoke 633 or BMW LA wheel multi-spoke 633 or BMW LA wheel multi-spoke 633 |
S1VHA=Yes S1WFA=Yes S29FA=Yes S29GA=Yes S29HA=Yes |
||||||||
| For vehicles with BMW LA wheel, W-spoke, 633 RS or BMW LA wheel multi-spoke 633 |
S1VHA=Yes S29GA=Yes |
|||||||||
| 02 | Disc wheel, light alloy, Reflexsilber | 8JX19 ET:30 | 2 | 36116863419 | Shop at ECS Tuning | |||||
| For vehicles with BMW LA wheel, W-spoke, 633 RS or BMW LA wheel multi-spoke 633 only for rear axle |
S1VHA=Yes S29GA=Yes |
|||||||||
| 02 | Disc wheel, light alloy, Reflexsilber | 9JX19 ET:44 | 2 | 36116874439 | Shop at ECS Tuning | |||||
| Mixed tyres | ||||||||||
| For vehicles with BMW LA wheel multi-spoke 633 RS/emer.op. or BMW LA wheel multi-spoke 633 or BMW LA wheel multi-spoke 633 |
S1WFA=Yes S29FA=Yes S29HA=Yes |
|||||||||
| 02 | Disc wheel, light alloy, Reflexsilber | 8JX19 ET:30 | 4 | 36116863419 | Shop at ECS Tuning | |||||
| or all-season tires | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 10 | Valve insert for RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 11 | Valve cap for RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
