MINI LA wheel Imprint Spoke 530 - 17" for BMW MINI Countryman F60 Cooper (2020)

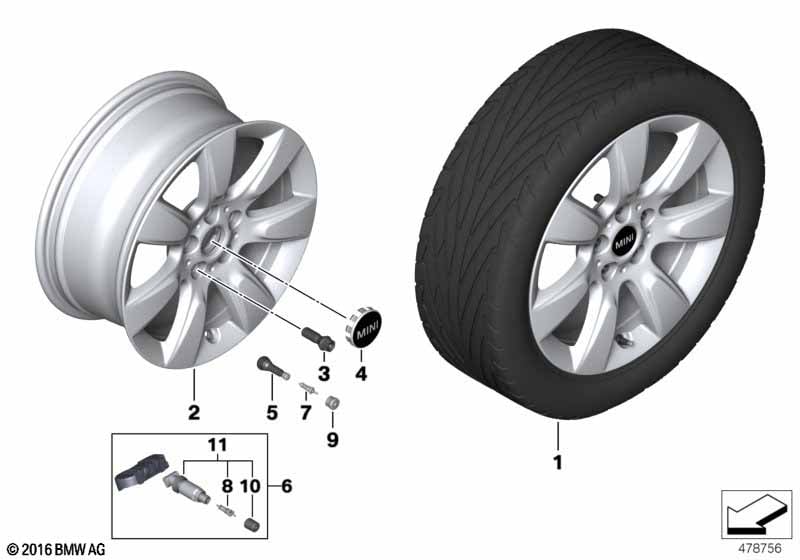

This MINI LA wheel Imprint Spoke 530 - 17" technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with MINI LA wheel imprint spoke or MINI LA wheel imprint spoke |
S20AA=Yes S2QBA=Yes |
||||||||
| 02 | Disc wheel, light alloy, Brightsilver | 7,5JX17 ET:52 | 4 | 36116868276 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | MINI | 4 | 36136857149 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 Cooper MINI LA wheel Imprint Spoke 530 - 17"?
- This technical diagram illustrates the MINI LA wheel Imprint Spoke 530 - 17" within the Wheels group for the MINI Countryman F60 Cooper produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Disc wheel, light alloy, Brightsilver (Part #36116868276).
- Which models use the hardware listed in this MINI LA wheel Imprint Spoke 530 - 17"?
- The hardware and components featured in the MINI LA wheel Imprint Spoke 530 - 17" are specific to the MINI Countryman F60 Cooper produced during 2020. These technical specifications ensure that parts like the Disc wheel, light alloy, Brightsilver (36116868276) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the MINI LA wheel Imprint Spoke 530 - 17" assembly?
- Each item in the MINI LA wheel Imprint Spoke 530 - 17" corresponds to the numbered list below the illustration. For the MINI Countryman F60 Cooper, you can identify the Disc wheel, light alloy, Brightsilver by locating its position on the schematic, which then links to the official BMW part number 36116868276 for the Wheels section.
