MINI LA wheel JCW Thrill Spoke 529 - 18" for BMW MINI Countryman F60 Cooper (2019)

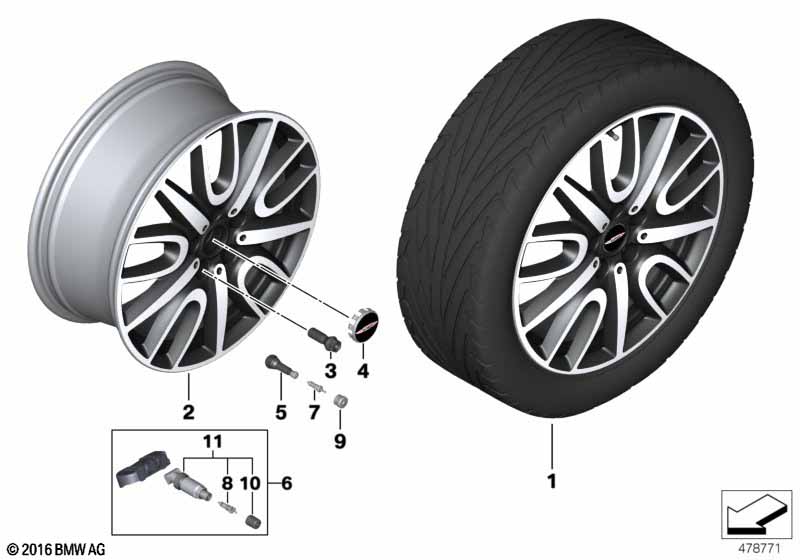

This MINI LA wheel JCW Thrill Spoke 529 - 18" technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with MINI LA wheel JCW Black Thrill or MINI LA wheel JCW thrill spoke or MINI LA wheel JCW thrill spoke black or MINI LA wheel JCW thrill spoke |
S20CA=Yes S20EA=Yes S2QDA=Yes S2QFA=Yes |
||||||||
| For vehicles with MINI LA wheel JCW Black Thrill or MINI LA wheel JCW thrill spoke black |
S20CA=Yes S2QDA=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 7,5JX18 ET:51 | 4 | 36106875603 | Shop at ECS Tuning | |||||
| For vehicles with MINI LA wheel JCW thrill spoke or MINI LA wheel JCW thrill spoke |
S20EA=Yes S2QFA=Yes |
|||||||||
| 02 | Disc wheel light alloy night black | 7,5JX18 ET:51 | 4 | 36106870873 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap JOHN COOPER WORKS | JCW | 4 | 36106861092 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
