BMW LA wheel double spoke 725 - 17" for BMW 2 Series F23 220d (2017)

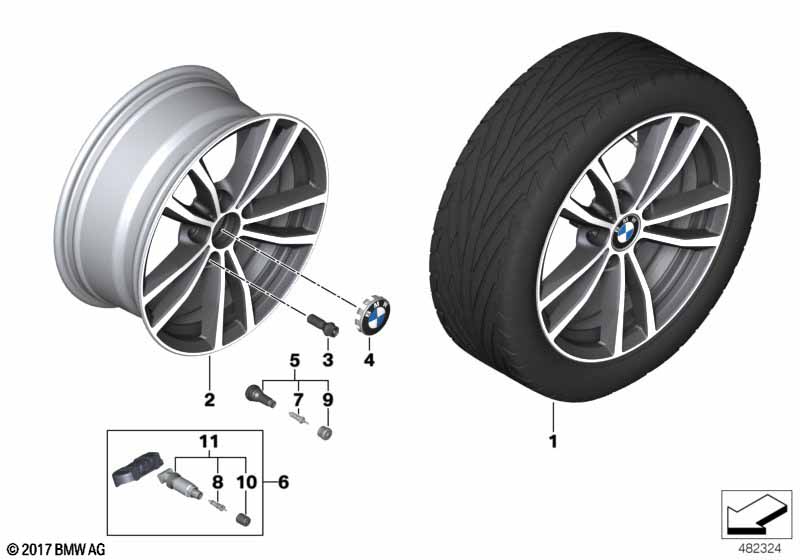

This BMW LA wheel double spoke 725 - 17" technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with 17" LA wheel double spoke 725 bk.em.op. or BMW LA wheel, double sp.725 JB/em.op. or 17" light-all.wh.d.spoke 725 GZ.run-flat or 17" light-alloy wh.db.spoke 725 run-flat |
S26CA=Yes S26DA=Yes S26RA=Yes S26TA=Yes |
||||||||
| For vehicles with 17" light-all.wh.d.spoke 725 GZ.run-flat or 17" light-alloy wh.db.spoke 725 run-flat and Sport brake system |
S26RA=Yes S26TA=Yes SZP1A=No |
|||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 7,5JX17 ET43 | 4 | 03/2014 | 36116879186 | Shop at ECS Tuning | ||||
| For vehicles with 17" LA wheel double spoke 725 bk.em.op. or BMW LA wheel, double sp.725 JB/em.op. and Sport brake system |
S26CA=Yes S26DA=Yes SZP1A=No |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 7,5JX17 ET43 | 4 | 03/2014 | 36116890429 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
