BMW LA wheel multi-spoke 724 - 17" for BMW 1 Series F20 LCI 120dX (2019)

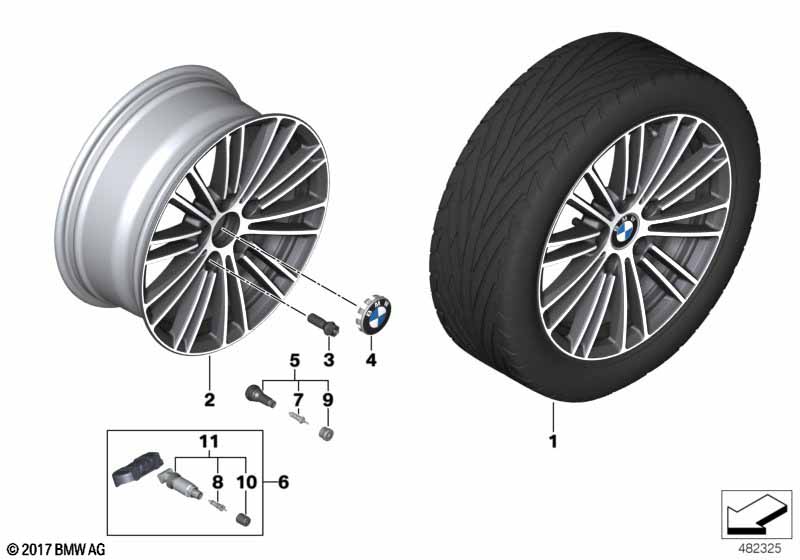

This BMW LA wheel multi-spoke 724 - 17" technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 120dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with 17" light-all.wh.d.spoke 724 GZ.run-flat or 17" light-all.whe.dbl.spoke 724 run-flat |
S26SA=Yes S26UA=Yes |
||||||||
| For vehicles with Sport brake system |
SZP1A=No |
|||||||||
| 02 | Light alloy rim Ferricgrey | 7,5JX17 ET43 | 4 | 03/2014 | 36116879185 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
