BMW li.-al.wheel double spoke 766M - 19" for BMW 2 Series F45 Active Tourer LCI 225xe (2021)

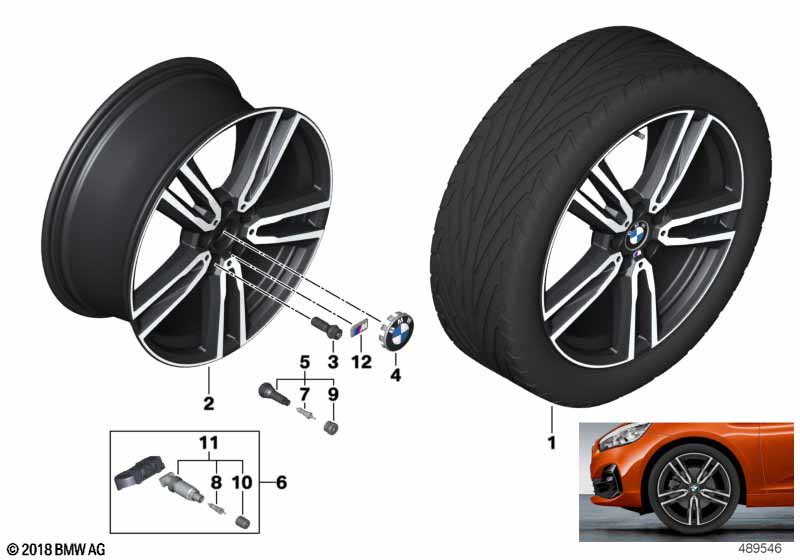

This BMW li.-al.wheel double spoke 766M - 19" technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 225xe. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. In member states of the EU and in Switzerland the excerpt from the EU type approval (available in wheel/tire sets on the EF homepage and/or on the Commercial Service Data DVD, in Germany also in the Infonet under BMW > Aftersales > Zubehör > Gutachten) is to be remitted to the customer. It may be necessary to amend the vehicle's official documents in specific individual countries. For vehicles with 19" LMR Turbinenstyling 487 and National version China |
SZQNA=Yes L8AAA=No |
||||||||
| 02 | Gloss-turned light alloy rim | 8JX19 ET:57 | 4 | 36118065399 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
