BMW LA wheel V-spoke 730l - 20" for BMW 8 Series G14 Convertible 840dX (2023)

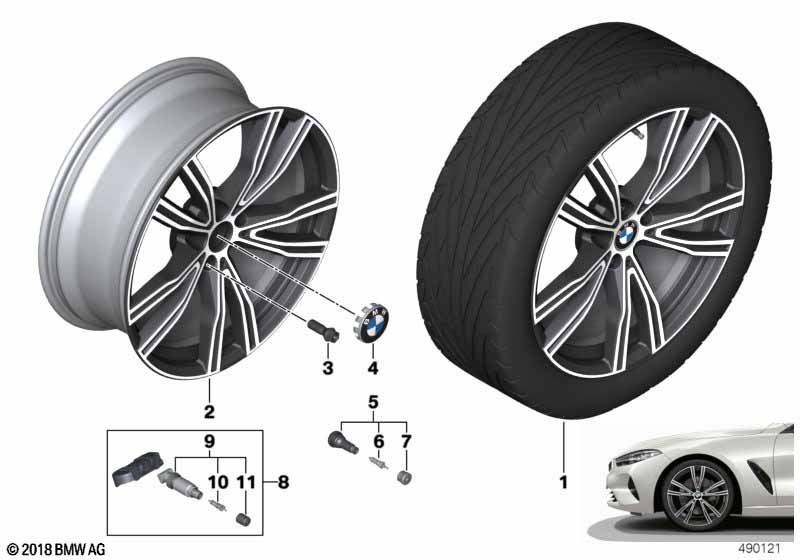

This BMW LA wheel V-spoke 730l - 20" technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with 20" BMW LA wheel V-spoke 730l MB emerg. |
S1W9A=Yes |
||||||||
| Mixed tyres only for rear axle |
||||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 9JX20 ET:41 | 2 | 36118072028 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| Mixed tyres only for front axle |
||||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 8JX20 ET:26 | 2 | 36118072027 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=Yes |
|||||||||
| 04 | Hub cap 50 Years M | BMW | 4 | 36135A37E40 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=No |
|||||||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 10 | Valve insert for RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 11 | Valve cap for RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
