BMW LA wheel V-spoke 780 - 18" for BMW 3 Series G20 Sedan 330e (2020)

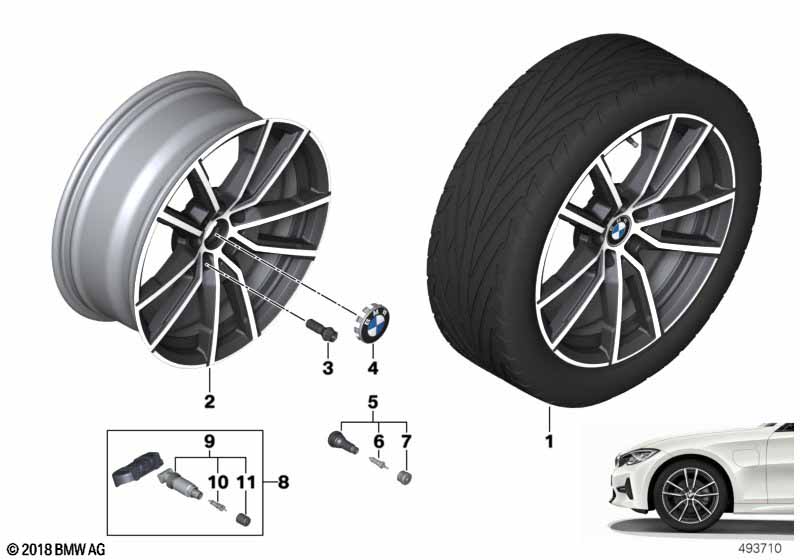

This BMW LA wheel V-spoke 780 - 18" technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with 18" light-alloy wheel V-spoke 780 or 18" LA wheel V-spoke 780 emerg.oper. or 18" LA wheel V-spoke 780 HP or 18" light-alloy wheel V-spoke 780 or 18" LA wheel V-spoke 780 emerg.oper. or BMW LA whl.V-spoke, 780 OG/GG/STD SO HP or BMW LA wheel V-spoke 780 OG/GG/MB or BMW LA wheel V-spoke 780 OG/GG/MB/RSC |
S1S5A=Yes S1S6A=Yes S1S7A=Yes S1T3A=Yes S1T4A=Yes S1U3A=Yes S1WGA=Yes S1WHA=Yes |
||||||||
| For vehicles with BMW LA whl.V-spoke, 780 OG/GG/STD SO HP or BMW LA wheel V-spoke 780 OG/GG/MB or BMW LA wheel V-spoke 780 OG/GG/MB/RSC Mixed tyres only for front axle |
S1U3A=Yes S1WGA=Yes S1WHA=Yes |
|||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 7,5JX18 ET:25 | 2 | 36116883522 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA whl.V-spoke, 780 OG/GG/STD SO HP or BMW LA wheel V-spoke 780 OG/GG/MB or BMW LA wheel V-spoke 780 OG/GG/MB/RSC Mixed tyres only for rear axle |
S1U3A=Yes S1WGA=Yes S1WHA=Yes |
|||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 8,5JX18 ET:40 | 2 | 36116897082 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with 18" light-alloy wheel V-spoke 780 or 18" LA wheel V-spoke 780 emerg.oper. or 18" LA wheel V-spoke 780 HP or 18" light-alloy wheel V-spoke 780 or 18" LA wheel V-spoke 780 emerg.oper. or Winter instead of summer tires ex-fact. |
S1S5A=Yes S1S6A=Yes S1S7A=Yes S1T3A=Yes S1T4A=Yes S931A=Yes |
|||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 7,5JX18 ET:25 | 4 | 36116883522 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=No |
|||||||||
| 04 | Wheel center cap with blue ring | BMW I | 4 | 36136852052 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=Yes |
|||||||||
| 04 | Hub cap 50 Years M | BMW | 4 | 36135A37E40 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 08 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz and CONTROL DSC |
S2VBA=Yes S876A=Yes S8WEA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz and CONTROL DSC |
S2VBA=Yes S876A=Yes S8WEA=No |
|||||||||
| 08 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 10 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 10 | Valve insert for RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 11 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 11 | Valve cap for RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
