BMW LA wheel double spoke 790M - 18" for BMW 3 Series G21 Touring 320e (2022)

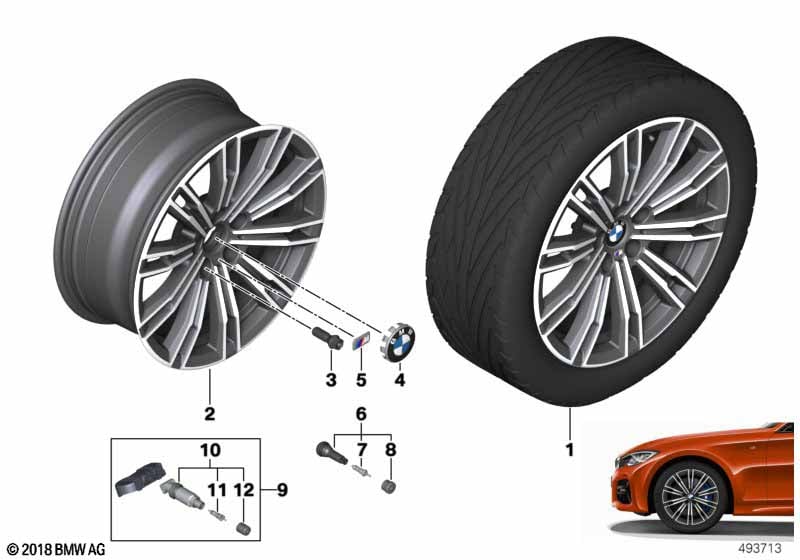

This BMW LA wheel double spoke 790M - 18" technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 320e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with 18" LA wheel double spoke 790M em.op. or 18" LA wheel double spoke 790M AS or 18" LA wheel double sp.790M AS em.op. or BMW LA wheel double spoke 790M OG/GG/MB or BMW LA wheel, dbl.spoke, 790M OG/GG/STD |
S1PDA=Yes S1PEA=Yes S1PFA=Yes S1REA=Yes S1W1A=Yes |
||||||||
| For vehicles with 18" LA wheel double spoke 790M em.op. or BMW LA wheel double spoke 790M OG/GG/MB or BMW LA wheel, dbl.spoke, 790M OG/GG/STD only for front axle |
S1PDA=Yes S1REA=Yes S1W1A=Yes |
|||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 7,5JX18 ET:25 | 2 | 36118089890 | Shop at ECS Tuning | |||||
| Mixed tyres machine-polished |
||||||||||
| For vehicles with 18" LA wheel double spoke 790M em.op. or BMW LA wheel double spoke 790M OG/GG/MB or BMW LA wheel, dbl.spoke, 790M OG/GG/STD only for rear axle |
S1PDA=Yes S1REA=Yes S1W1A=Yes |
|||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 8,5JX18 ET:40 | 2 | 36118089891 | Shop at ECS Tuning | |||||
| Mixed tyres machine-polished |
||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| 05 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 09 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 09 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz and CONTROL DSC |
S2VBA=Yes S876A=Yes S8WEA=No |
|||||||||
| 09 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz and CONTROL DSC |
S2VBA=Yes S876A=Yes S8WEA=Yes |
|||||||||
| 09 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 10 | Rep. kit, screw valve for RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 10 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 11 | Valve insert for RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 11 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 12 | Valve cap for RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 12 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
