MINI LA wheel 60 years Spoke 525 - 17 " for BMW MINI F55 LCI One (2024)

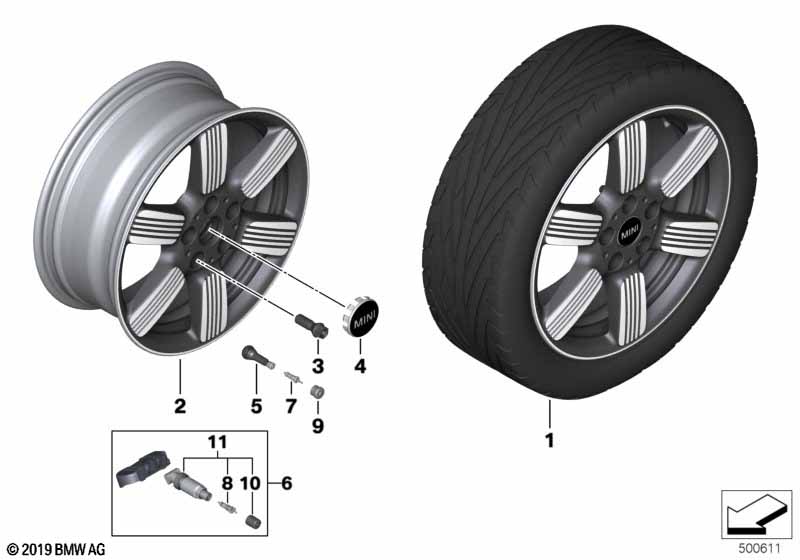

This MINI LA wheel 60 years Spoke 525 - 17 " technical drawing provides a detailed breakdown of the assembly for the MINI F55 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with MINI LA wheel 60 years Spoke JB 525 or MINI LA wh.60 years Spoke JB 525 em.op. or MINI LA wheel 60 years Spoke 525 or MINI LA wheel 60 yrs.Spoke 525 emer.op. |
S1V3A=Yes S1V4A=Yes S27UA=Yes S27VA=Yes |
||||||||
| For vehicles with MINI LA wheel 60 years Spoke 525 or MINI LA wheel 60 yrs.Spoke 525 emer.op. and Sport brake system |
S27UA=Yes S27VA=Yes SZZDA=No |
|||||||||
| 02 | Disk wheel light alloy spectre grey | 7JX17 ET:54 | 4 | 36116884399 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with MINI LA wheel 60 years Spoke JB 525 or MINI LA wh.60 years Spoke JB 525 em.op. and Sport brake system |
S1V3A=Yes S1V4A=Yes SZZDA=No |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 7JX17 ET:54 | 4 | 36106898289 | Shop at ECS Tuning | |||||
| Unicolor | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | MINI | 4 | 36136857149 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert for RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap for RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
