BMW LA wheel M crosspacks 794M - 20" OA for BMW 4 Series G22 Coupé 430dX (2024)

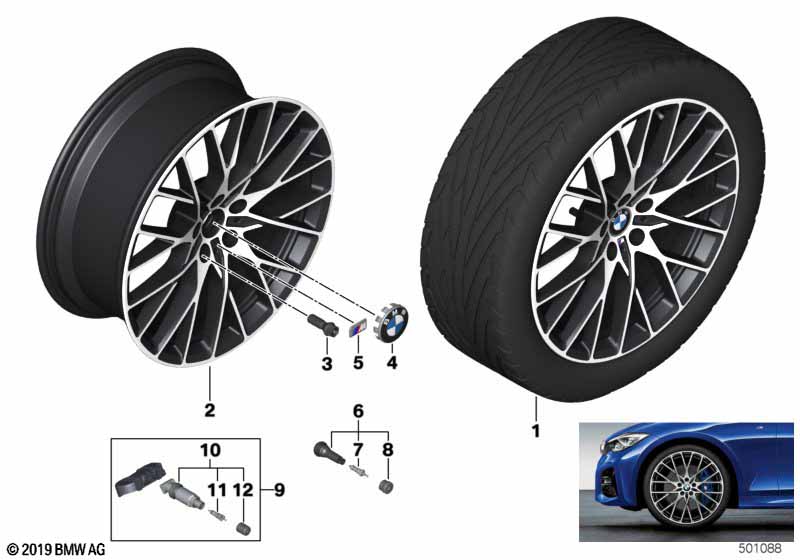

This BMW LA wheel M crosspacks 794M - 20" OA technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with 20'' light-al.wh.M Perform.crossspk.794M and National version China |
SZYTA=Yes L8AAA=No |
||||||||
| 02 | Light alloy rim, black | 8JX20 ET:27 | 2 | 36116885311 | Shop at ECS Tuning | |||||
| Mixed tyres only for front axle machine-polished |
||||||||||
| 02 | Light alloy rim, black | 8,5JX20 ET:40 | 2 | 36116885312 | Shop at ECS Tuning | |||||
| Mixed tyres only for rear axle machine-polished |
||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| 05 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 09 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 09 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 11 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 12 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
