BMW LA wheel double spoke 848M - 18" for BMW 3 Series G28 Sedan 320Ld (2022)

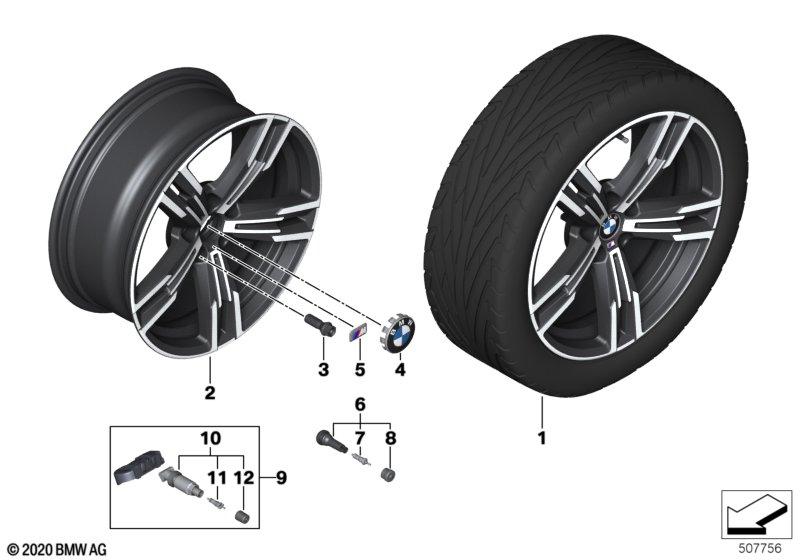

This BMW LA wheel double spoke 848M - 18" technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan 320Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW l all wh, doub spk 848M STD SO BIC or BMW l all wh, doub spk 848M RSC SO BIC or BMW LA wheel double spoke 848M JB/GG or BMW LA WHL.DBL.spoke, 848M JB/GG/EMER.OP or BMW LA wheel double spoke 848M JB/GG or BMW LA WHL.DBL.spoke, 848M JB/GG/EMER.OP |
S1HXA=Yes S1HYA=Yes S1R3A=Yes S1R4A=Yes S1R5A=Yes S1R6A=Yes |
||||||||
| For vehicles with BMW LA wheel double spoke 848M JB/GG or BMW LA WHL.DBL.spoke, 848M JB/GG/EMER.OP Mixed tyres only for rear axle |
S1R3A=Yes S1R4A=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8,5JX18 ET:40 | 2 | 36118746632 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel double spoke 848M JB/GG or BMW LA WHL.DBL.spoke, 848M JB/GG/EMER.OP Mixed tyres only for front axle |
S1R3A=Yes S1R4A=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 7,5JX18 ET:25 | 2 | 36118746631 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW l all wh, doub spk 848M STD SO BIC or BMW l all wh, doub spk 848M RSC SO BIC or BMW LA wheel double spoke 848M JB/GG or BMW LA WHL.DBL.spoke, 848M JB/GG/EMER.OP |
S1HXA=Yes S1HYA=Yes S1R5A=Yes S1R6A=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 7,5JX18 ET:25 | 4 | 36118746631 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=Yes |
|||||||||
| 04 | Hub cap 50 Years M | BMW | 4 | 36135A37E40 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=No |
|||||||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| 05 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 09 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 09 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz and CONTROL DSC |
S2VBA=Yes S876A=Yes S8WEA=Yes |
|||||||||
| 09 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz and CONTROL DSC |
S2VBA=Yes S876A=Yes S8WEA=No |
|||||||||
| 09 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 10 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 10 | Rep. kit, screw valve for RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 11 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 11 | Valve insert for RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 12 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=Yes |
|||||||||
| 12 | Valve cap for RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
