BMW LA wheel double spoke 844 - 18" for BMW 5 Series G30 LCI 520dX (2022)

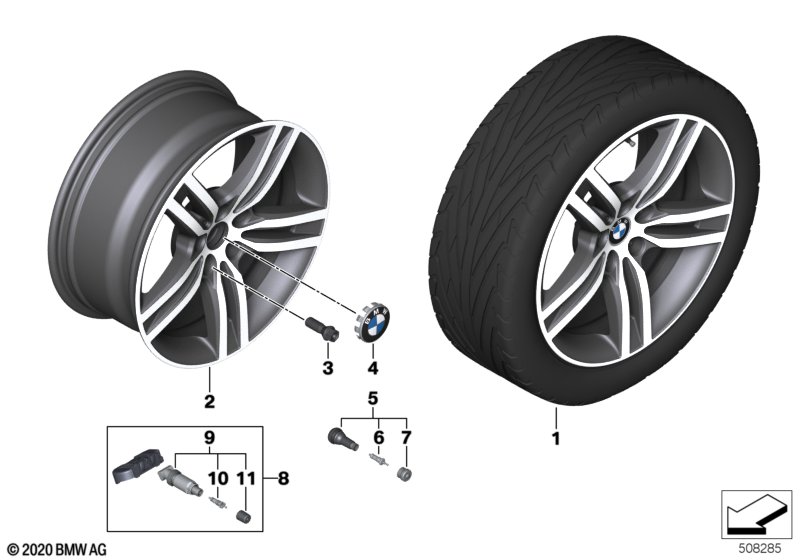

This BMW LA wheel double spoke 844 - 18" technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel double spoke 844 OG/GG or BMW LA whl.dbl.spoke 844 OG/GG/emer.op. or BMW LA wheel double spoke 844 OG/GG or BMW LA whl.dbl.spoke 844 OG/GG/emer.op. |
S1U4A=Yes S1U5A=Yes S1U8A=Yes S1U9A=Yes |
||||||||
| 02 | Disk wheel, light alloy, in Orbitgrey | 8JX18 ET:30 | 4 | 36116894842 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 09 | Rep. kit, screw valve for RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 10 | Valve insert for RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 11 | Valve cap for RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
