BMW LA wheel aerodynamics 843 - 20" for BMW iX3 G08 BEV iX3 (2021)

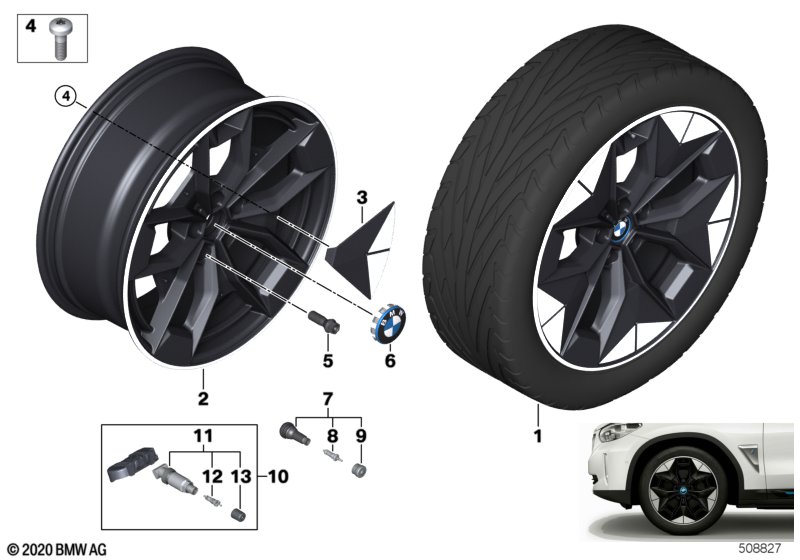

This BMW LA wheel aerodynamics 843 - 20" technical drawing provides a detailed breakdown of the assembly for the iX3 G08 BEV iX3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel aerodynamics 843 JB/GG or BMW LA wheel aerodynamics 843 JB/GG or BMW LA wheel aerodynamics 843 JB/GG or BMW LA whl.aero.843 JB/GG/emer.op. |
S1V7A=Yes S1VDA=Yes S1VEA=Yes S1VFA=Yes |
||||||||
| only for front axle Mixed tyres |
||||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8JX20 ET:26 | 2 | 36116895629 | ENDED | Shop at ECS Tuning | ||||
| machine-polished | ||||||||||
| only for rear axle Mixed tyres |
||||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 9,5JX20 ET:43 | 2 | 36116895631 | ENDED | Shop at ECS Tuning | ||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel aerodynamics 843 JB/GG only for front axle Mixed tyres |
S1V7A=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8JX20 ET:26 | 2 | 36107916270 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with BMW LA wheel aerodynamics 843 JB/GG only for rear axle Mixed tyres |
S1V7A=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 9,5JX20 ET:43 | 2 | 36107916271 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with National version China and BMW LA wheel aerodynamics 843 JB/GG If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
L8AAA=Yes S1VDA=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8JX20 ET:26 | 4 | 36116894844 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel aerodynamics 843 JB/GG or BMW LA whl.aero.843 JB/GG/emer.op. only for front axle Mixed tyres |
S1VEA=Yes S1VFA=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8JX20 ET:26 | 2 | 36116894844 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with BMW LA wheel aerodynamics 843 JB/GG or BMW LA whl.aero.843 JB/GG/emer.op. only for rear axle Mixed tyres |
S1VEA=Yes S1VFA=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 9,5JX20 ET:43 | 2 | 36116894845 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with BMW LA wheel aerodynamics 843 JB/GG |
S1V7A=Yes |
|||||||||
| 03 | Insert | 20 | 36136896787 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 1 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| For vehicles with BMW LA wheel aerodynamics 843 JB/GG or BMW LA wheel aerodynamics 843 JB/GG or BMW LA whl.aero.843 JB/GG/emer.op. |
S1VDA=Yes S1VEA=Yes S1VFA=Yes |
|||||||||
| 03 | Insert | 20 | 36116895630 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 1 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| 04 | Screw | M5X12.5 | 20 | 36136889172 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 06 | Wheel center cap with blue ring | BMW I | 4 | 36136852052 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 10 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 12 | Valve insert for RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 13 | Valve cap for RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
