BMW LA wheel double spoke 861M - 19" for BMW 4 Series G26 Gran Coupé 420i (2024)

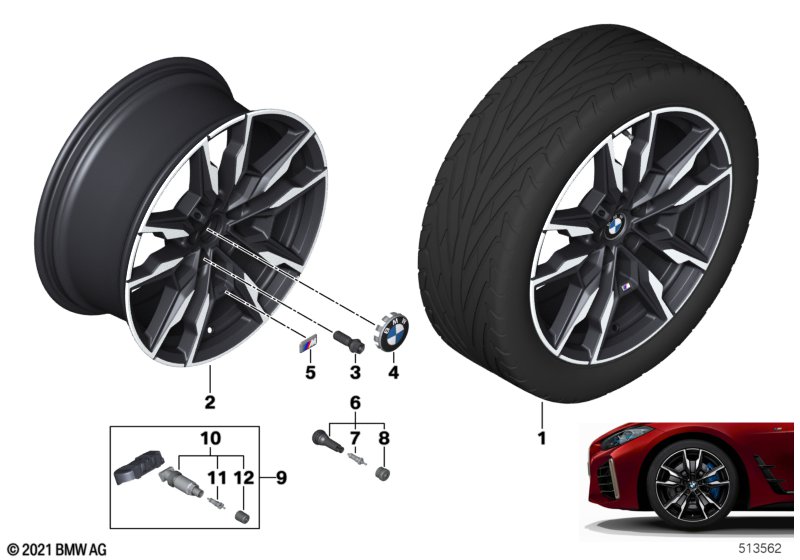

This BMW LA wheel double spoke 861M - 19" technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel dbl.spoke 861M or BMW LA wheel dbl.spoke 861M STD HP or BMW LA wheel dbl.spoke 861M RSC |
S3FTA=Yes S3FUA=Yes S3FVA=Yes |
||||||||
| For vehicles with BMW LA wheel dbl.spoke 861M or BMW LA wheel dbl.spoke 861M STD HP or BMW LA wheel dbl.spoke 861M RSC Mixed tyres only for front axle |
S3FTA=Yes S3FUA=Yes S3FVA=Yes |
|||||||||
| 02 | Disc wheel lt.alloy black II solid paint | 8,5JX19 ET:35 | 2 | 36118089227 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel dbl.spoke 861M or BMW LA wheel dbl.spoke 861M STD HP or BMW LA wheel dbl.spoke 861M RSC Mixed tyres only for rear axle |
S3FTA=Yes S3FUA=Yes S3FVA=Yes |
|||||||||
| 02 | Disc wheel lt.alloy black II solid paint | 9JX19 ET:42 | 2 | 36118089228 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=Yes |
|||||||||
| 04 | Hub cap 50 Years M | BMW | 4 | 36135A37E40 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=No |
|||||||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| 05 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 09 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 09 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 11 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 12 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
