BMW LA wheel aerodynamics 937 - 20" for BMW 5 Series G60 Sedan 520i (2024)

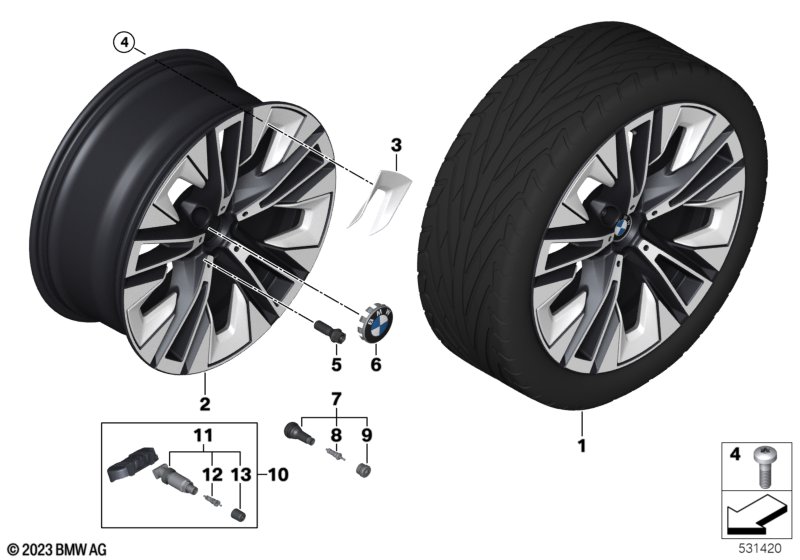

This BMW LA wheel aerodynamics 937 - 20" technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel aerodyn. 937 STD SO silver or BMW LA wl aerodyn. 937 STD SO HP silver or BMW LA wheel aerodyn. 937 STD A/S silver or BMW LA wheel aerodyn. 937 STD SO TB |
S3GHA=Yes S3GKA=Yes S3GLA=Yes S3GMA=Yes |
||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO TB only for front axle Mixed tyres only for standard summer tires |
S3GMA=Yes |
|||||||||
| 02 | Disc wheel Titan Bronze | 8,5JX20 ET:28 | 2 | 36115A33B24 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO TB only for rear axle Mixed tyres only for standard summer tires |
S3GMA=Yes |
|||||||||
| 02 | Disc wheel Titan Bronze | 10JX20 H2 ET:46 | 2 | 36115A33B25 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver or BMW LA wl aerodyn. 937 STD SO HP silver or BMW LA wheel aerodyn. 937 STD A/S silver only for front axle Mixed tyres Only for standard summer tires, standard all-season tires, or standard summer HP tires. |
S3GHA=Yes S3GKA=Yes S3GLA=Yes |
|||||||||
| 02 | Disc wheel Jetblack solid paint | 8,5JX20 H2 ET28 | 2 | 36115A324E4 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver or BMW LA wl aerodyn. 937 STD SO HP silver or BMW LA wheel aerodyn. 937 STD A/S silver only for rear axle Mixed tyres Only for standard summer tires, standard all-season tires, or standard summer HP tires. |
S3GHA=Yes S3GKA=Yes S3GLA=Yes |
|||||||||
| 02 | Disc wheel Jetblack solid paint | 10JX20 H2 ET46 | 2 | 36115A324E5 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO TB |
S3GMA=Yes |
|||||||||
| 03 | Insert | 20 | 36135A33B26 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 5 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver and BMW LA wl aerodyn. 937 STD SO HP silver and BMW LA wheel aerodyn. 937 STD A/S silver |
S3GHA=Yes S3GKA=Yes S3GLA=Yes |
|||||||||
| 03 | Insert | 20 | 36135A32506 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 5 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver and BMW LA wl aerodyn. 937 STD SO HP silver and BMW LA wheel aerodyn. 937 STD A/S silver |
S3GHA=Yes S3GKA=Yes S3GLA=No |
|||||||||
| 03 | Insert | 20 | 36135A32506 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 5 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver and BMW LA wl aerodyn. 937 STD SO HP silver and BMW LA wheel aerodyn. 937 STD A/S silver |
S3GHA=Yes S3GKA=No S3GLA=Yes |
|||||||||
| 03 | Insert | 20 | 36135A32506 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 5 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver and BMW LA wl aerodyn. 937 STD SO HP silver and BMW LA wheel aerodyn. 937 STD A/S silver |
S3GHA=Yes S3GKA=No S3GLA=No |
|||||||||
| 03 | Insert | 20 | 36135A32506 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 5 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver and BMW LA wl aerodyn. 937 STD SO HP silver and BMW LA wheel aerodyn. 937 STD A/S silver |
S3GHA=No S3GKA=Yes S3GLA=Yes |
|||||||||
| 03 | Insert | 20 | 36135A32506 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 5 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver and BMW LA wl aerodyn. 937 STD SO HP silver and BMW LA wheel aerodyn. 937 STD A/S silver |
S3GHA=No S3GKA=Yes S3GLA=No |
|||||||||
| 03 | Insert | 20 | 36135A32506 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 5 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| For vehicles with BMW LA wheel aerodyn. 937 STD SO silver and BMW LA wl aerodyn. 937 STD SO HP silver and BMW LA wheel aerodyn. 937 STD A/S silver |
S3GHA=No S3GKA=No S3GLA=Yes |
|||||||||
| 03 | Insert | 20 | 36135A32506 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 5 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| 04 | Screw | M5X12.5 | 40 | 36136889172 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 06 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 10 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 11 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 12 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 13 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
