BMW LA wheel M star spoke 938M - 20" for BMW 5 Series G60 Sedan 520i (2025)

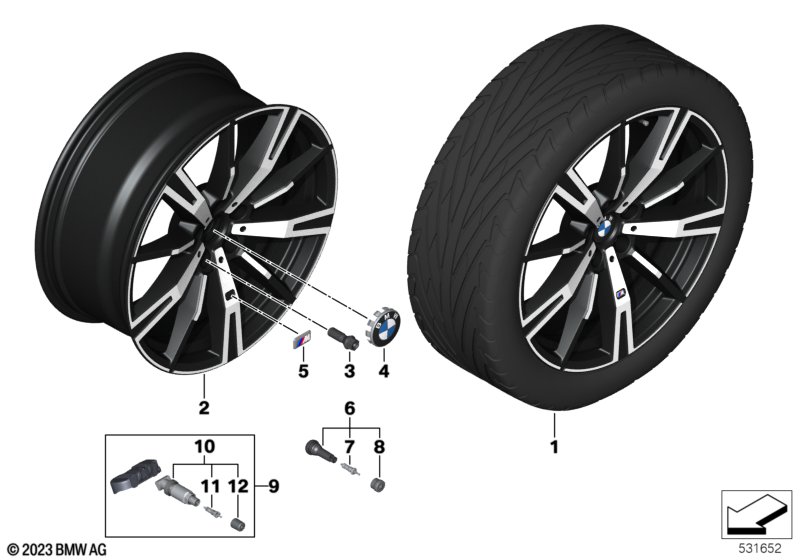

This BMW LA wheel M star spoke 938M - 20" technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel star spk 938M STD MB or BMW LA wheel star spk 938M STD A/S MB or Winter instead of summer tires ex-fact. |
S3GNA=Yes S3GPA=Yes S931A=Yes |
||||||||
| For vehicles with BMW LA wheel star spk 938M STD MB and BMW LA wheel star spk 938M STD A/S MB Mixed tyres only for front axle for winter tires for standard summer tires or standard all-season tires |
S3GNA=Yes S3GPA=Yes |
|||||||||
| 02 | Disc wheel Jetblack solid paint | 8,5JX20 H2 ET28 | 2 | 36115A324E6 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel star spk 938M STD MB and BMW LA wheel star spk 938M STD A/S MB Mixed tyres only for front axle for winter tires for standard summer tires or standard all-season tires |
S3GNA=Yes S3GPA=No |
|||||||||
| 02 | Disc wheel Jetblack solid paint | 8,5JX20 H2 ET28 | 2 | 36115A324E6 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel star spk 938M STD MB and BMW LA wheel star spk 938M STD A/S MB Mixed tyres only for front axle for winter tires for standard summer tires or standard all-season tires |
S3GNA=No S3GPA=Yes |
|||||||||
| 02 | Disc wheel Jetblack solid paint | 8,5JX20 H2 ET28 | 2 | 36115A324E6 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel star spk 938M STD MB and BMW LA wheel star spk 938M STD A/S MB Mixed tyres only for rear axle for winter tires for standard summer tires or standard all-season tires |
S3GNA=Yes S3GPA=Yes |
|||||||||
| 02 | Disc wheel Jetblack solid paint | 10JX20 H2 ET:46 | 2 | 36115A324E7 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel star spk 938M STD MB and BMW LA wheel star spk 938M STD A/S MB Mixed tyres only for rear axle for winter tires for standard summer tires or standard all-season tires |
S3GNA=Yes S3GPA=No |
|||||||||
| 02 | Disc wheel Jetblack solid paint | 10JX20 H2 ET:46 | 2 | 36115A324E7 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wheel star spk 938M STD MB and BMW LA wheel star spk 938M STD A/S MB Mixed tyres only for rear axle for winter tires for standard summer tires or standard all-season tires |
S3GNA=No S3GPA=Yes |
|||||||||
| 02 | Disc wheel Jetblack solid paint | 10JX20 H2 ET:46 | 2 | 36115A324E7 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| 05 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 09 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 09 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 10 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 11 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 12 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
