BMW LA wheel aerodynamics 939M - 20" for BMW 5 Series G61 Touring 550eX (2025)

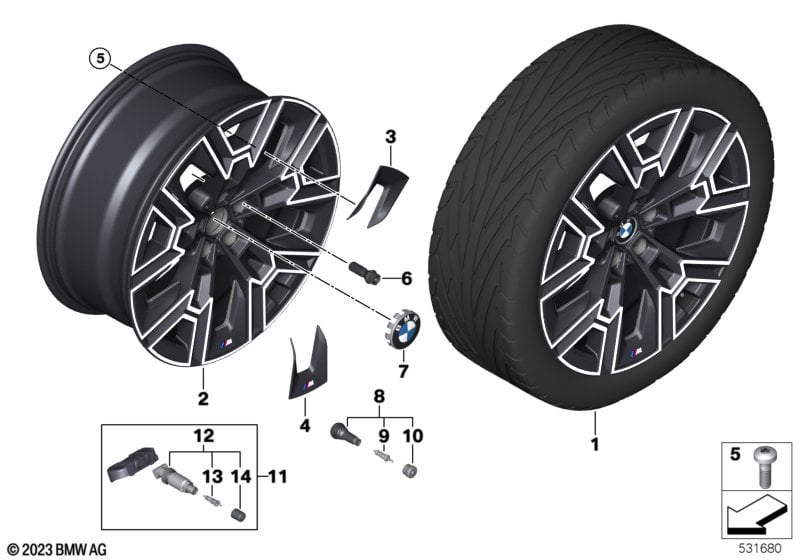

This BMW LA wheel aerodynamics 939M - 20" technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel aerodynamics 939M STD MB or BMW LA wheel aerodyn. 939M STD SO HP MB or BMW LA wheel aerodyn. 939M STD A/S MB |
S3GQA=Yes S3GRA=Yes S3GSA=Yes |
||||||||
| For vehicles with BMW LA wheel aerodynamics 939M STD MB or BMW LA wheel aerodyn. 939M STD SO HP MB or BMW LA wheel aerodyn. 939M STD A/S MB Mixed tyres only for rear axle Styling 939M (S3GRA) with mixed tires and sport tires only in connection with Sport brake (SA3M1 or SA3M2) for 530e and 530e xDrive |
S3GQA=Yes S3GRA=Yes S3GSA=Yes |
|||||||||
| 02 | Disc wheel light alloy Midnight Gray | 10JX20 ET:46 | 2 | 36115A324E9 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| For vehicles with BMW LA wheel aerodynamics 939M STD MB or BMW LA wheel aerodyn. 939M STD SO HP MB or BMW LA wheel aerodyn. 939M STD A/S MB Mixed tyres only for front axle Styling 939M (S3GRA) with mixed tires and sport tires only in connection with Sport brake (SA3M1 or SA3M2) for 530e and 530e xDrive |
S3GQA=Yes S3GRA=Yes S3GSA=Yes |
|||||||||
| 02 | Disc wheel light alloy Midnight Gray | 8,5JX20 ET:28 | 2 | 36115A324E8 | Shop at ECS Tuning | |||||
| machine-polished If one or more of the inserts are damaged, they can be replaced individually. There is no need for the wheel with tire to be replaced in its entirety. |
||||||||||
| 03 | Insert 1 | 16 | 36135A32507 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 4 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| 04 | Insert 2 | 4 | 36135A33B29 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw | M5X12.5 | 1 | 36136889172 | Shop at ECS Tuning | |||||
| You absolutely must renew mounting bolts after releasing them! |
||||||||||
| 05 | Screw | M5X12.5 | 40 | 36136889172 | Shop at ECS Tuning | |||||
| 06 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| For vehicles with Omission of specific design scopes |
S3DEA=No |
|||||||||
| 07 | Wheel center cap with blue ring | BMW I | 4 | 36136852052 | Shop at ECS Tuning | |||||
| For vehicles with Omission of specific design scopes |
S3DEA=Yes |
|||||||||
| 07 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 08 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 09 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 11 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 11 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 12 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 13 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 14 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
