BMW LA wheel double spoke 995M - 19" for BMW 3 Series G21 Touring LCI 330i (2025)

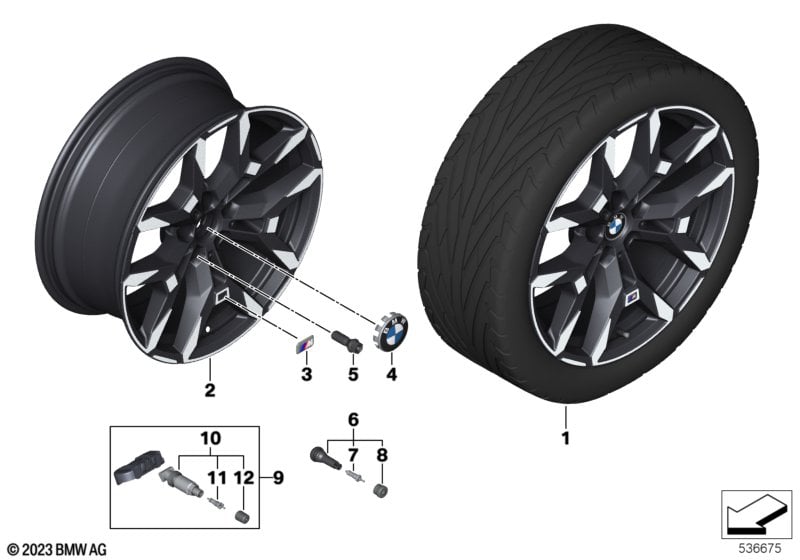

This BMW LA wheel double spoke 995M - 19" technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wh dbl.spoke 995M JB STD SO MB or BMW l all wh, doub spk 995M RSC SO MB JB or BMW LA wh, dbl-spk 995M r-fl ti A/S JB or BMW LA wh. dbl-spk 995M STD SO HP MB JB or BMW LA wh dbl.spoke 995M STD SO MB or BMW l all wh, doub spk 995M RSC SO MB or BMW LA wh, dbl-spk 995M run-fl tires A/S or BMW l all wh, doub spk 995M STD SO HP MB |
S1HFA=Yes S1HGA=Yes S1HHA=Yes S1HKA=Yes S1HLA=Yes S1HMA=Yes S1HNA=Yes S1HPA=Yes |
||||||||
| For vehicles with BMW LA wh dbl.spoke 995M STD SO MB or BMW l all wh, doub spk 995M RSC SO MB or BMW l all wh, doub spk 995M STD SO HP MB Mixed tyres only for front axle |
S1HLA=Yes S1HMA=Yes S1HPA=Yes |
|||||||||
| 02 | Scheibenrad Leichtmetall Jet Black Uni | 8JX19 H2 ET27 | 2 | 36115A576C4 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wh dbl.spoke 995M STD SO MB or BMW l all wh, doub spk 995M RSC SO MB or BMW l all wh, doub spk 995M STD SO HP MB Mixed tyres only for rear axle |
S1HLA=Yes S1HMA=Yes S1HPA=Yes |
|||||||||
| 02 | Scheibenrad Leichtmetall Jet Black Uni | 8,5 JX19H2 ET40 | 2 | 36115A576C5 | Shop at ECS Tuning | |||||
| machine-polished | ||||||||||
| For vehicles with BMW LA wh dbl.spoke 995M JB STD SO MB or BMW l all wh, doub spk 995M RSC SO MB JB or BMW LA wh. dbl-spk 995M STD SO HP MB JB Mixed tyres only for front axle |
S1HFA=Yes S1HGA=Yes S1HKA=Yes |
|||||||||
| 02 | Scheibenrad Leichtmetall Jet Black Uni | 8JX19 H2 ET27 | 2 | 36115A64B57 | Shop at ECS Tuning | |||||
| Unicolor | ||||||||||
| For vehicles with BMW LA wh dbl.spoke 995M JB STD SO MB or BMW l all wh, doub spk 995M RSC SO MB JB or BMW LA wh. dbl-spk 995M STD SO HP MB JB Mixed tyres only for rear axle |
S1HFA=Yes S1HGA=Yes S1HKA=Yes |
|||||||||
| 02 | Scheibenrad Leichtmetall Jet Black Uni | 8,5JX19 H2 ET40 | 2 | 36115A64B58 | Shop at ECS Tuning | |||||
| Unicolor | ||||||||||
| 03 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| For vehicles with BMW M Heritage logos |
S3MQA=No |
|||||||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 09 | Wheel electronics module, RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and Radio frequency 315 MHz and CONTROL DSC |
S2VBA=Yes S876A=Yes S8WEA=No |
|||||||||
| 09 | Wheel electronics module TPM 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| For vehicles with Tire pressure display and CONTROL DSC |
S2VBA=Yes S8WEA=No |
|||||||||
| 10 | Rep. kit, screw valve for RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 11 | Valve insert for RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 12 | Valve cap for RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
